HIGH CAPACITY CIRCULATION HEATERS
← Flanged Circulation Heaters
Suction Oil Circulation Heaters →
High Capacity Flanged Circulation Heaters feature Incoloy® 840 sheathed elements, carbon steel pipe body with 2″ high temperature insulation, and digital LED solid state control (0-1000 deg F) with thermocouple in outlet.
|

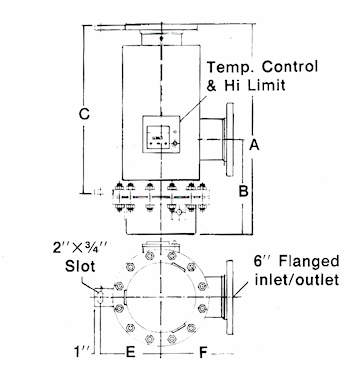

Flange Size
|
B
|
E
|
F
|
|
14″ – 150#
|
18 ½”
|
11 ½”
|
15
|
|
16″ – 150#
|
18 ¾”
|
12 ¾”
|
16
|
|
18″ – 150#
|
19″
|
13 ½”
|
17
|
standard FEATURES
- Incoloy® 840 sheathed elements at 15 watts/in 2
- Carbon steel pipe body with 2″ high temperature insulation.
- Operating temperatures to 750°F, consult factory for higher applications
- Digital LED solid state control (0-1000°F) with thermocouple in outlet.
- Solid State high limit with reset pushbutton and thermocouple to sheath.
Note: Controls must be wired thru coil of contactor(s).
|
18″ – 150#
|
||||
|
Volts
3-Ph. |
KW
|
A
|
C
|
Wt.
(lbs.) |
|
240
480 |
275
|
88
|
78 ¾
|
1760
|
|
240
480 |
300
|
94
|
84 ¾
|
1885
|
|
240
480 |
325
|
100
|
91
|
2000
|
|
240
480 |
350
|
106
|
97
|
2125
|
|
120
240 |
400
|
118
|
109
|
2375
|
|
16″ – 150#
|
||||
|
Volts
3-Ph. |
KW
|
A
|
C
|
Wt.
(lbs.) |
|
240
480 |
175
|
85
|
76 ⅛
|
1185
|
|
240
480 |
200
|
93
|
84 ⅛
|
1290
|
|
240
480 |
225
|
101
|
92 ⅛
|
1375
|
|
240
480 |
250
|
109
|
100 ⅛
|
1485
|
|
120
240 |
300
|
125
|
116 ⅛
|
1680
|
|
14″ – 150#
|
||||
|
Volts
3-Ph. |
KW
|
A
|
C
|
Wt.
(lbs.) |
|
240
480 |
75
|
65
|
56 ⅛
|
835
|
|
240
480 |
90
|
80
|
71 ⅛
|
925
|
|
240
480 |
125
|
95
|
86 ⅛
|
1135
|
|
240
480 |
150
|
102 ½
|
93 ⅝
|
1295
|
|
120
240 |
175
|
117 ½
|
108 ⅝
|
1470
|
