cast inline CIRCULATION HEATERS

All circulation heaters from STS feature isolated flow-paths. Several models are ideal for heating flammable media or are appropriate for applications where purity must be maintained.

Cast Inline Circulation Heaters Summary Sheet
Cast Inline for Cryogenic & Industrial Gas Solutions
Cast Inline for Gas & Liquid Heaters for Wafer Processing
Cast Inline for Natural Gas Heating & Vaporizing
Cast Inline Heaters
Inline Heater Application Sheet
Technical Data
CAST-X Circulation Heaters

CAST-X Circulation Heaters

Offered in 6 sizes to 60 kW, CAST-X Heaters feature 316 SST flow-tubes with multiple enclosures & options.

Cast-X High Temp Circulation Heaters

casT-X HIGH TEMPERATURE CIRCULATION HEATERS

With a temperature range to 1112°F (600°C), our CAST-X High Temp Circ. Heaters feature bronze bodies.

PUR X CIRCULATION HEATERS

PUR-X CIRCULATION HEATERS

Perfect for heating caustic solvents or semi gases, PUR-X Heaters feature replaceable PFA flow-tubes.

Specialty Circulation Heaters

SPECIALTY CIRCULATION HEATERS

The Universal Solvent Heater and PUR-Therm Gas Delivery Heater meet specialized semi applications.

Circulation heater with Stainless Steel Tubes

CAST-X 500 Circulation Heaters

Power Range:
300 – 1500 Watts		 Max Pressure:
5100 psi (351 bar)
Flow-Tube:
OD: .250” (1/4″) (6.3 mm) Wall: .035” (.89 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
No Enclosure392°F (200°C)
NEMA 1 (general purpose)250°F (121°C)
NEMA 4 (water resistant)250°F (121°C)
NEMA 7 (explosion proof)392°F (200°C)
No. of Tubes:
1 Tube		 Download Cast-X 500 Brochure
  Download STEP Cast-X 500 Drawing



Cast-X 1000 Circulation Heater

CAST-X 1000 Circulation Heaters

Power Range:
700-3000 Watts		 Max Pressure:
2100 psi (144 bar)
Flow-Tube:
OD: .313” (5/16″) (7.9 mm) Wall: .020” (1.7 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
No Enclosure662°F (350°C)
NEMA 1 (water resistant)608°F (320°C)
NEMA 1 with thermostat250°F (121°C)
NEMA 4 (water resistant)777°F (555°C)
NEMA 4 with thermostat250°F (121°C)
No. of Tubes:
1 Tube

Download Cast-X 1000 Brochure

Download STEP Cast-X 1000 Drawing



CAST-X 2000

CAST-X 2000 Circulation Heaters

Power Range:
1 – 6 kW		 Max Pressure:
5100 psi (351 bar)
Flow-Tube:
OD: .50” (1/2″) (12.7 mm) Wall: .065” (1.7 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
NEMA 1 (general purpose)482°F (250°C)
NEMA 1 with standoff662°F (350°C)
NEMA 1 with thermostat250°F (121°C)
NEMA 4 (water resistant)350°F (175°C)
NEMA 4 with standoff662°F (350°C)
NEMA 7 (explosion proof)482°F (250°C)
No. of Tubes:
1 Tube		 Download Cast-X 2000 Brochure



CAST-X 2500 Circulation Heaters

CAST-X 2500 Circulation Heaters

Power Range:
2.5 – 15 kW		 Max Pressure:
4000 psi (275 bar)
Flow-Tube:
OD: .625” (5/8″) (15.9 mm) Wall: .065” (1.7 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
NEMA 1 (general purpose) 662°F (350°C)
NEMA 4 (water resistant)572°F (300°C)
NEMA 7 (explosion proof)482°F (250°C)
ATEX (explosion proof)482°F (250°
No. of Tubes:
2 Standard, 1 as Custom		 Download Cast-X 2500 Brochure



CAST-X 3000 Circulation Heaters

CAST-X 3000 Circulation Heaters

Power Range:
1 – 24.6 kW		 Max Pressure:
3300 psi (228 bar)
Flow-Tube:
OD: .750” (3/4″) (19.1 mm) Wall: .065” (1.7 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
NEMA 4 (water resistant)572°F (300°C)
NEMA 7 / ATEX (explosion proof)482°F (250°C)
No. of Tubes:
2 Standard, 1 as Custom		 Download Cast-X 3000 Brochure



Circulation Heaters for Natural Gas Heating

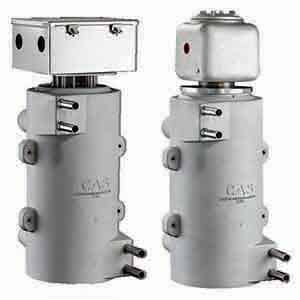

CAST-X 4000 Circulation Heaters

Power Range:
12.5 – 60 kW		 Max Pressure:
3100 psi (214 bar)
Flow-Tube:
OD: .750” (3/4″) (19.1 mm) Wall: .065” (1.7 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
NEMA 4 (water resistant)572°F (300°C)
NEMA 7 / ATEX (explosion proof)482°F (250°C)
No. of Tubes:
2 Standard, 1 as Custom		 Download Cast-X 4000 Brochure

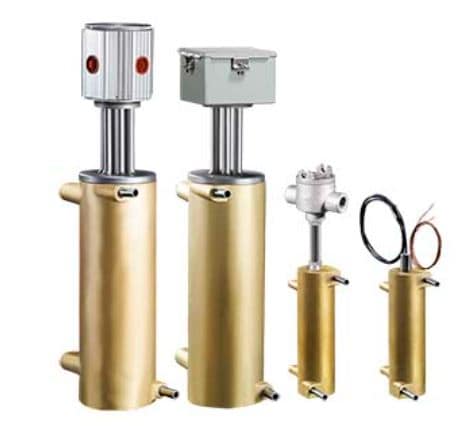

CAST-X High Temperature Circulation Heaters

CAST-X High Temperature Circulation Heaters

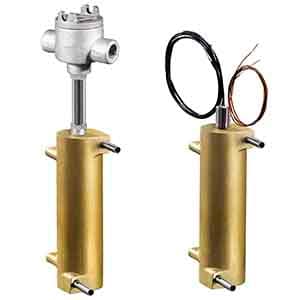

CAST-X 500 High Temperature Circulation Heaters

Power Range:
565 – 1500 Watts		 Max Pressure:
10700 psi (737 bar)
Flow-Tube:
OD: .250” (1/4″) (6.3 mm) Wall: .035” (.89 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
No Enclosure 1112°F (600°C)
NEMA 7 (explosion proof)1112°F (600°C)
No. of Tubes:
1 Tube

Download Cast-X 500 Brochure

Download High Temperature Brochure



CAST-X High Temperature Circulation Heaters

CAST-X 2000 High Temperature Circulation Heaters

Power Range:
1 – 6 kW		 Max Pressure:
6800 psi (468 bar)
Flow-Tube:
OD: .50” (1/2″) (12.7 mm) Wall: .065” (.89 mm) Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
NEMA 4 (water resistant)1112°F (600°C)
NEMA 7 (explosion proof)1112°F (600°C)
No. of Tubes:
1 Tube



Download Cast-X 2000 Brochure

Download High Temp Brochure



pur-x Circulation Heaters

pur-x 1000 circulation heaters

PUR-X 1000 Circulation Heaters

Power Range:
1.5 – 4.5 kW		 Max Pressure:
70 psi (5 bar)
Flow-Tube:
OD: .375” (3/8″) (9.52 mm) Wall: .031” (.80 mm) PFA (PerFluoroAlkoxy)		 Enclosures and Max Temps.:
NEMA 7 (explosion proof)392°F (200°C)
No. of Tubes:
1 Tube		 Download Pur-X 1000 Brochure



Pur-X 2000 Circulation Heaters

PUR-X 2000 Circulation Heaters

Power Range:
5 – 7.9 kW		 Max Pressure:
70 psi (5 bar)
Flow-Tube:
OD: .375” (3/8″) (9.52 mm) Wall: .031” (.80 mm) PFA (PerFluoroAlkoxy)		 Enclosures and Max Temps.:
NEMA 7 (explosion proof)392°F (200°C)
No. of Tubes:
1 Tube		 Download Pur-X 2000 Brochure



Universal Solvent Heater

Universal Solvent Heater

universal solvent heater

Power Range:
6 – 8 kW		 Max Pressure:
Solvent Tube: 3300 psi (228 bar)
Cooling Tube: 5100 psi (351 bar)

Flow-Tube:
OD: .750” (3/4″) (19.1 mm) Wall: .065” (1.7 mm) (Seamless 316 SST)

Cooling-Tube:
OD: .250” (1/4″) (6.3 mm) Wall: .035” (0.9 mm) (Seamless 316 SST)

 Enclosures and Max Temps.:
NEMA 7 (explosion proof)392°F (200°C)
No. of Tubes:
1 Flowtube, 1 Cooling Tube		 Download Universal Solvent Brochure



pur-therm gas delivery heaters

Gas Delivery Heater

PUR-Therm Gas Delivery Heaters

Power Range:
130- 1330 Watts		 Max Pressure:
5100 psi (351 bar)
Flow-Tube:
OD: .250” (1/4″) (6.3 mm) Wall: .035” (.89 mm) High-Purity Electropolished Seamless Stainless Steel (316L grade)		 Enclosures and Max Temps.:
Standard Max: 392°F (200°C)
No. of Tubes:
1 Tube with VCR Fittings		 Download Pur-Therm Brochure
