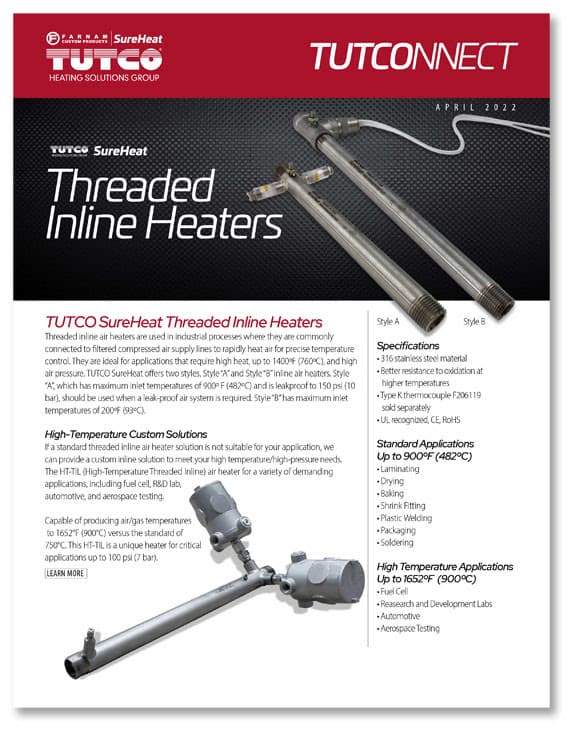

Threaded In-Line Air Heaters

Threaded in-line air heaters are designed for industrial process heating applications requiring high-heat and high air pressure. Serpentine™ heating elements are installed into a 304 stainless steel housing and threaded at both ends. TUTCO SureHeat offer two styles, Style “A” and Style “B” inline air heaters. Style “A” should be used when a leak-proof air system is required.

Threaded inline air heaters are commonly connected to filtered compressed air supply lines and rapidly heat air for precise temperature control inline with heated industrial processes.

  • Threaded In-line thermocouple adapter material is 316 stainless steel
  • Better resistance to oxidation at higher temperatures
  • Type K thermocouple F206119 sold separately
  • Use of other sensor types and mounting locations can result in heater damage
  • Thermocouple mounting depth location is critical. Follow all mounting instructions.
  • If replacing a Thermocouple, take note of the depth by measuring the distance to the compression fitting on the old Thermocouple.
  • UL recognized, CE, RoHS

Additional Info

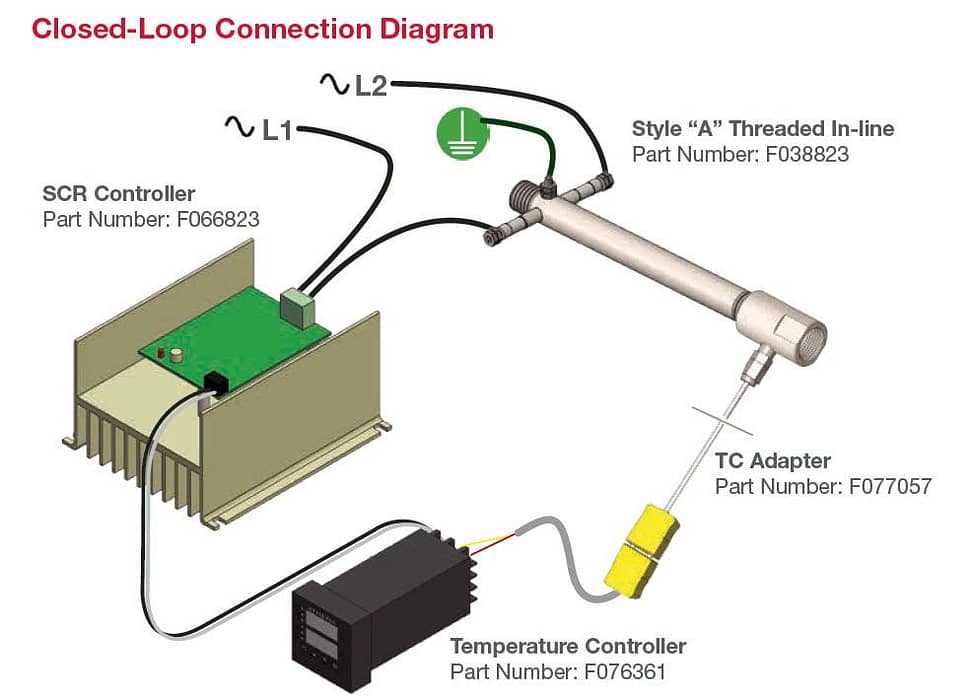

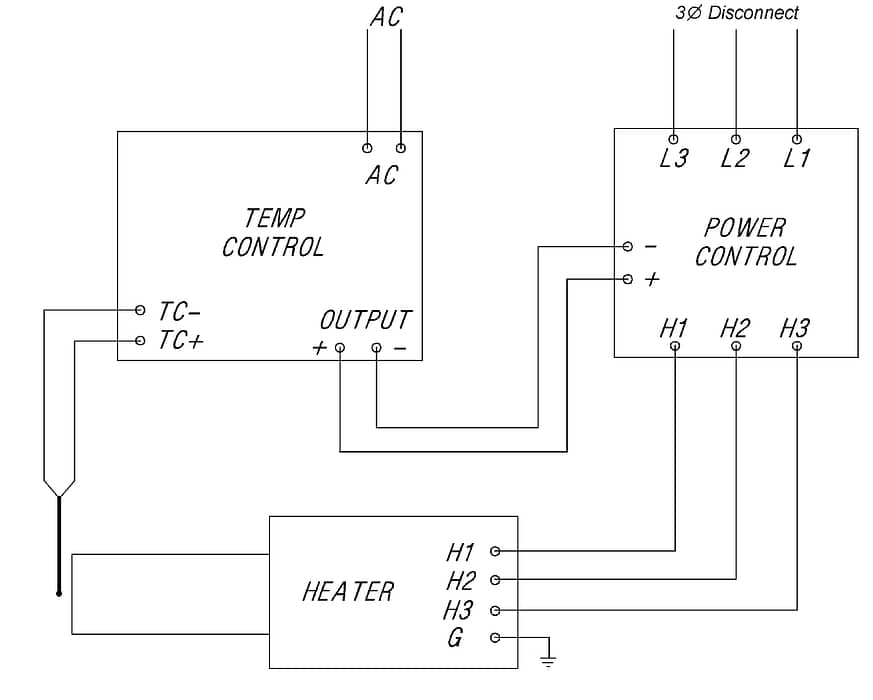

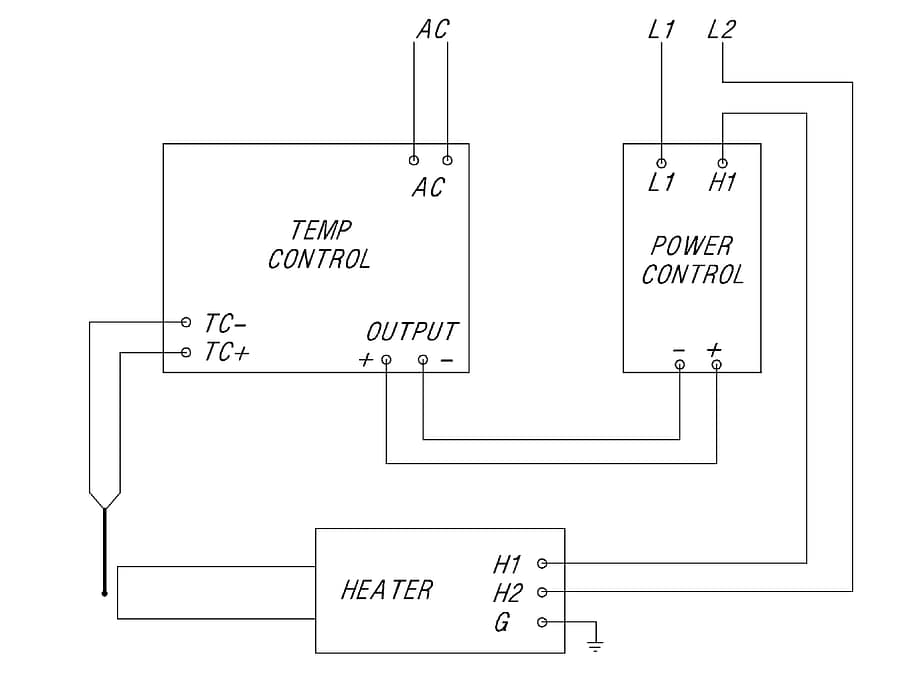

Make sure to properly mount the TC coupling so that the TC is slightly above the ceramic rod running through the center of the Serpentine™ heating element. The open end of the TC should be in the heated air stream.

The inlet side of the heater is located closest to the power feed throughs. Installation orientation is critical. Positioning the heater in the wrong direction will cause damage. Like all Tutco SureHeat heaters, do not operate without the air on.

Product Specs

  • Maximum Inlet Pressure………………………………………………………150 PSI (10 BAR)
  • Maximum Inlet Air Temperature – Body Style A……………..900°F (482°C)
  • Maximum Inlet Air Temperature – Body Style B………………….200°F (93°C)
  • Maximum Exit Air Temperature……………………………………………..1400°F (760°C)

STYLE A

  • UL Recognized, CE, RoHS
  • High-pressure power feed-throughs
  • Leak-proof to 150 psi (10 bar)
  • Maximum inlet temperatures 900°F (482°C)
  • Torque Specification for Power Connections: 20 lb-in (2.26 N-m)

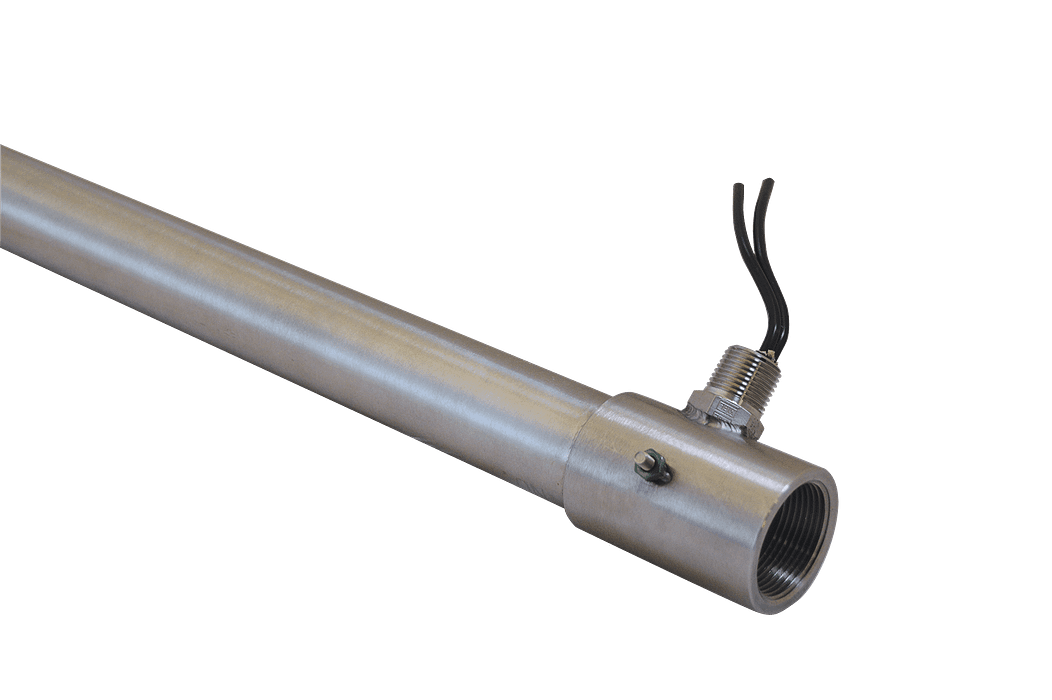

STYLE B

  • UL Recognized, CE, RoHS
  • 12” (305mm) wire power leads
  • Not recommended for leak-proof systems due to slight leakage through wire and jacket
  • Maximum inlet temperatures 200°F (93°C)
threaded inline part numbers
  • F038821 THD INLINE STY A 3/8” NPT 1.6KW 170V
  • F038822 THD INLINE STY B 3/8” NPT 1.6KW 170V
  • F038823 THD INLINE STY A 1/2” NPT 4.0KW 220V
  • F038824 THD INLINE STY B 1/2” NPT 4.0KW 220V
  • F038825 THD INLINE STY A 1-1/4” NPT 6.0KW 220V
  • F038826 THD INLINE STY B 1-1/4” NPT 6.0KW 220V
  • F057972 THD INLINE STY A 1/2” NPT 4.5 OHM BALCO
  • F060989 THD INLINE STY B 3/8” NPT 4.5 OHM BALCO
  • F061293 THD INLINE 1/2” STYLE B 2.2 OHM BALCO
  • F063007 THD INLINE STY B 2-1/2” NPT 18.0KW 240V
  • F063422 THD INLINE 1-1/4” STYLE A BALCO 4 OHM
  • F074439 THD INLINE STY B 2-1/2” NPT 24.0kW 240V
  • F076339 THD INL 1-1/4” 6kW 208V-HI TEMP
  • F076358 THD INL 2.5” 24kW 480V 3PH 316SS
  • F076418 THD INLINE STYLE B 2-2 1/2” NPT 18kW 480V
  • F076523 THD INL 1-1/4” 15KW 480V 1PH 316H MNPT E
  • F076525 THD INL 1-1/4” 6kW 208V HI TEMP – NPT EX
  • F076619 THD INL HTR 1-1/4 8KW 240V 1PH
  • F076495 THD INL HTR 1-1/4” 15KW 480V 1PH 31A 316H
  • F077362 THD INL HTR 1-1/4” 6kW 220V 1PH Style B with TC
  • F077056 TC ADAPTOR 3/8” THREADED INLINE
  • F077057 TC ADAPTOR 1/2” THREADED INLINE
  • F077058 TC ADAPTOR 1-1/4” THREADED INLINE
  • F077059 TC ADAPTOR 2-1/2” THREADED INLINE

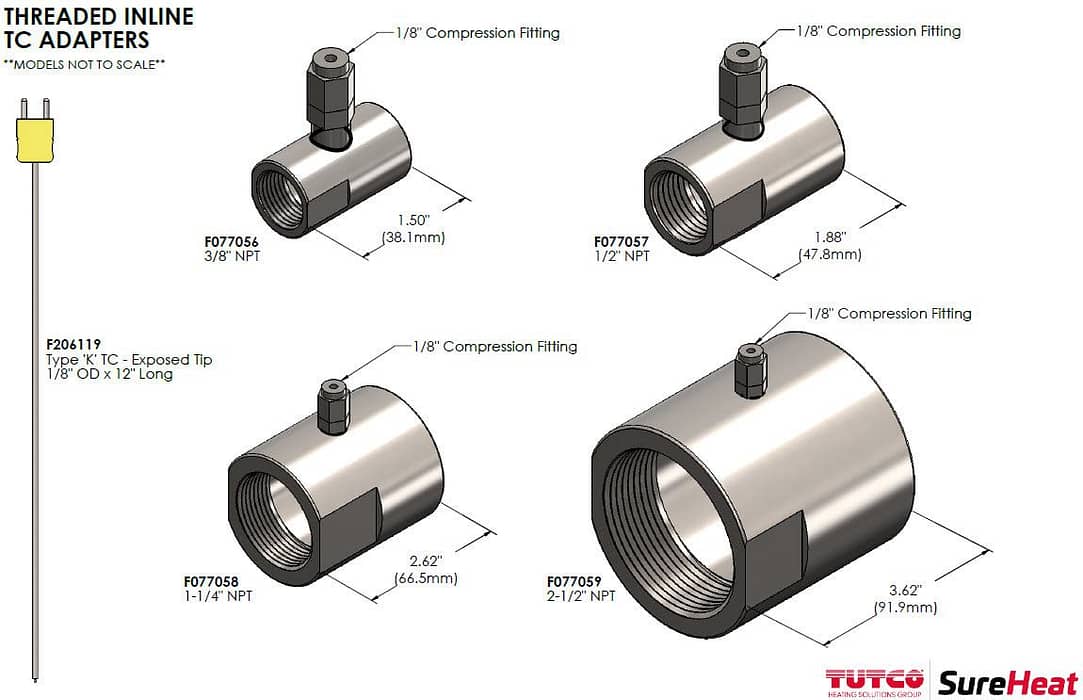

THERMO COUPLE ADAPTERS
F077056
TC Adapter 3/8” Threaded In-line
F077057
TC Adapter 1/2” Threaded In-line
F077058
TC Adapter 1-1/4” Threaded In-line
F077059
TC Adapter 2-1/2” Threaded In-line
F206119
1/8” TC Type K 12” Probe
