Series ILD Tubular Air Duct Heaters

<–SERIES DM TUBULAR AIR DUCT HEATERS

FINNED TUBULAR AIR HEATERS ->

Series ILD In Line Tubular Air Duct Heaters feature Incoloy® 840 elements, painted steel frame, NEMA 1 terminal enclosure, and replaceable element design.



Inline duct heater

Features:

  • 26 watts per sq. inch on sheath
  • Incoloy 840 elements – 1700°F max. sheath temperature
  • Nichrome A resistance wire
  • Recompacted bends
  • NEMA 1 terminal enclosure
  • Replaceable element design
  • Painted steel frame
Recommended Operating Conditions
Air Speed
(ft. per second)
Maximum
Operating Temp.
4
600°F
9
650°F
16
750°F
Volts
3-Phase
#
Circuits

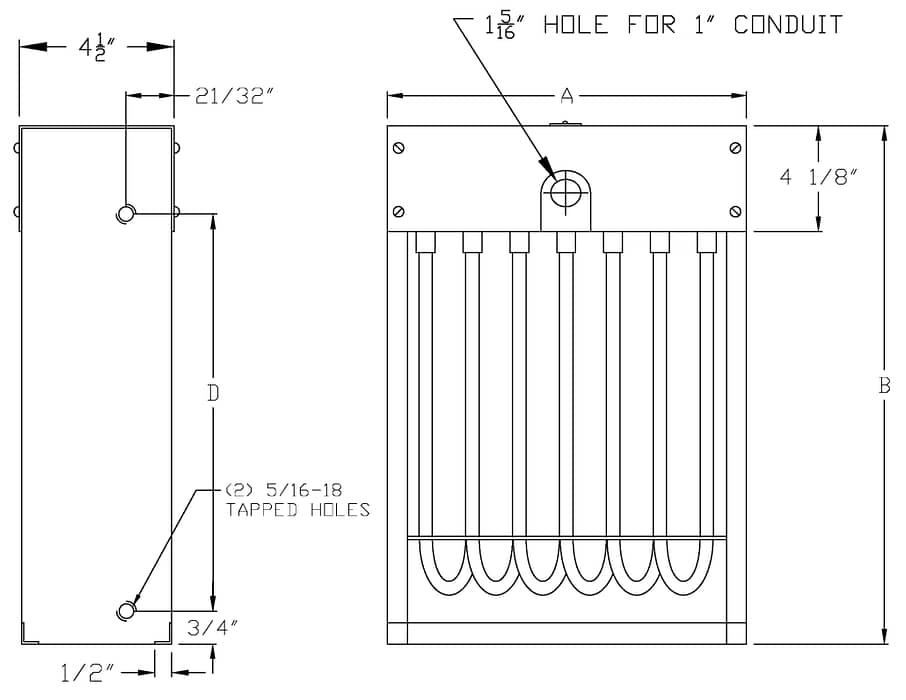

KW
A
B
D
#
Elems.
Wt.
(lbs.)
240
480
1
1
6
10 34
15 78
11 12
9
30
240
480
1
1
12
15 38
18 12
14 18
12
40
240
480
1
1
15
15 38
21 58
17 14
12
45
240
480
1
1
20
20 18
21 58
17 14
18
50
240
480
1
1
25
20 18
26 18
21 34
18
60
240
480
2
1
30
29 12
21 58
17 14
24
70
240
480
2
1
40
29 12
27 38
23
24
85
240
480
4
2
50
29 12
33 18
28 34
24
105

<–SERIES DM TUBULAR AIR DUCT HEATERS

FINNED TUBULAR AIR HEATERS ->

Calculators

Power Flow Rate Temp Calculator

Calculate the electrical power, flow rate or temperature requirement.
airflow in standard cubic feet per minute
temperature rise in degrees F from the inlet to the exhaust
Watts = SCFM x ΔT/2.5

Temperature Conversion Calculator

Calculate the electrical power, flow rate or temperature requirement.
°F = ((( °C * 9) / 5 ) + 32)
°C = ((( °F - 32) * 5 ) / 9)

Three-Phase Unit Calculator

Fill in two values to find the 3rd.
W = LC * (V * √2)
V = (W / LC) / √2
LC = W / (V * √2)

Single Phase Unit Calculator

Fill in two values to find the 3rd.
W = LC * V
V = LC * W
LC = W / V

Ohms Law Calculator

Fill in two values to find the other two.

O = V / A

O = V² / W

O = W / A²

V = A * O = A * (V/A)

V = √(W * O)

V = W / A

A = V / O

A = W/ V

A = √(W / O)

W = A * V

W = V² / O

W = A² * O

Heat Transfer Through Convection Calculator

ρ = density (lb/ft3)

V = volume flow rate (ft3/hour)

Cp = specific heat (Btu/lb°F)

Ta-Tb = temperature differential (°F)

Q = ρ x V x Cp x (Ta-Tb)


Fill in four values

ρ = density (lb/ft3)
V = volume flow rate (ft3/hour)
Cp = specific heat (Btu/lb°F)
Ta-Tb = TD (°F)
Q = ρ x V x Cp x (Ta-Tb)

ACFM to SCFM

ACFM = airflow in actual cubic feet per minute

P = gage pressure (psi)

T = gas temperature °R = 460 + °F

SCFM = airflow in standard cubic feet per minute


Find Standard Cubic Feet per Minute based on data from your Actual Cubic Feet per Minute Rotameter

airflow in actual cubic feet per minute
gage pressure (psi)
gas temperature °R = 460 + °F
airflow in standard cubic feet per minute

Standard Flow Rate (SCFM) Calculator

Calculate the SCFM.
Actual cubic feet per minute
Actual pounds per square inch at Gauge
Actual temperature in °F. °R = 460 + °F
CFM * (PSI actual / 14.7psi)*(528°R / T actual)

Pressure Conversion

Fill in one value to calculate the other.
PSI = Bar * 14.504
Bar = PSI / 14.504

Mass Flow to volume Metric Flow

Fill in one value to calculate the other two
kg/h = Kilogram Per Hour (lb/min multiply by 27.216)
Lbs/min = Pounds per minute (kg/h divide by 27.216)
SCFM = Standard cubic feet per minute
