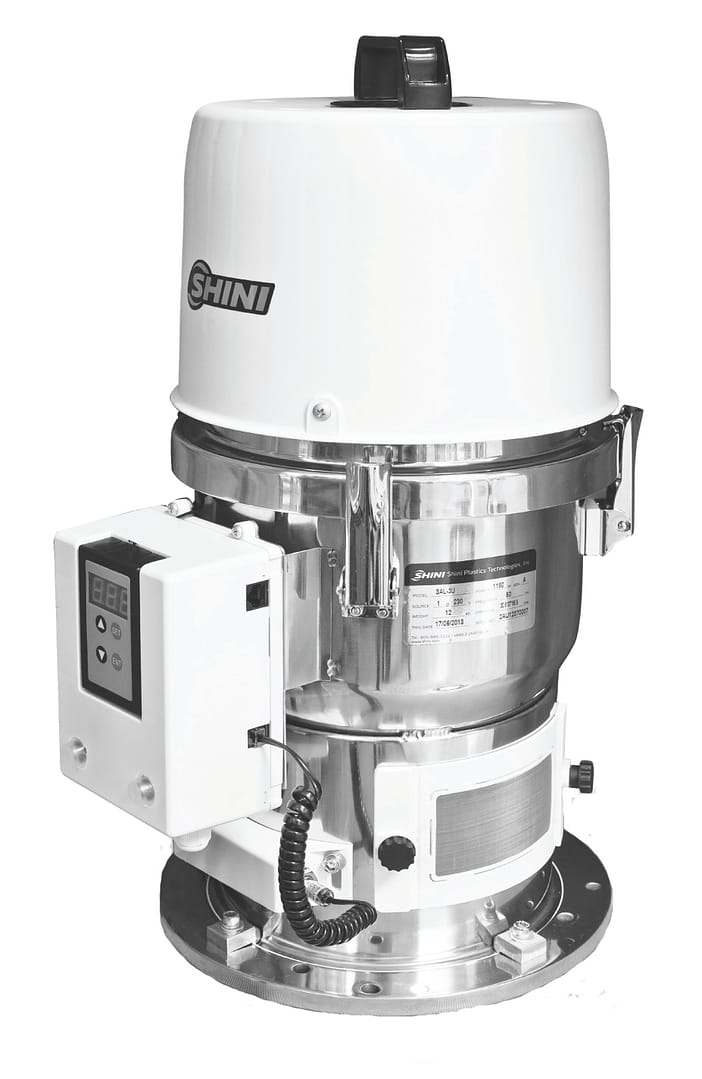

SELF CONTAINED (VACUUM) HOPPER LOADERS SPECS.
Model #  Conveying Capacity (lbs) Hopper Caacity (lbs)
SAL-1U 66 1
SAL-3U 440 3
SAL6U 660 7
SAL-12U 900

15

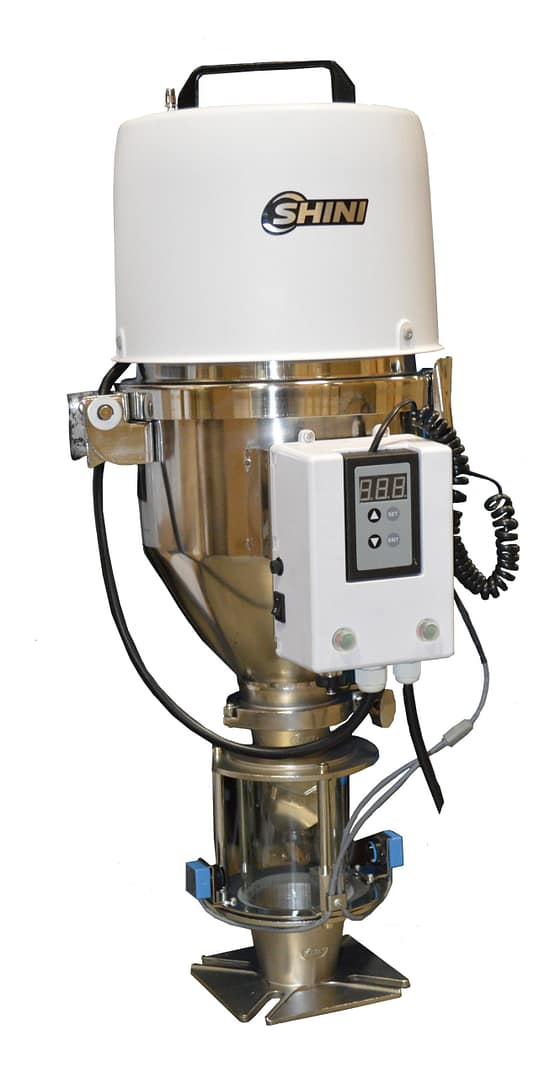

GLASS TUBE HOPPER WITH PHOTO SENSOR
Model # Conveying Capacity (lbs/hr) Hopper  Capacity (lbs)
SAL-3UE 440 3
DESCRIPTION

The Shini USA SHR-U and SHR-U-E Receivers are constructed of high quality stainless steel and feature a vacuum sequencing valve. Stainless steel bodies and also feature.

  • Vacuum sequencing valve
  • Six pin plug for connection to SAL-UG Control
  • Dust collection bin for ease of cleaning
VENTURI (COMPRESSED AIR) LOADERS SPECS.
Model # Conveying Capacity (lbs/hr) Level Switch
VL-50 88 Glass Tube Hopper with Photo Sensor
VL-120 176 Glass Tube Hopper with Photo Sensor
DESCRIPTION

Utilizing a vacuum, the compressed air hopper loader draws material from drums, bins or gaylords. From here, the material is conveyed via compressed air to the stainless steel receiving hopper. Manufactured using stainless steel, our compressed air hopper loaders are lightweight and compact, making them an ideal addition to your operations. Each Compressed Air Venturi Loader comes equipped with a number of features that aid in optimal efficiency. Our Compressed Air Venturi Loaders feature:

Stainless steel hopper and base
Material pick-up wand
Low maintenance filter assembly
Wide diameter hopper to keep material flowing without bridging
Material demand sensor
Compact size
Lightweight body
Filtered exhaust
Level sensor in glass-tube signals material status
Compressed air filter and regulator
Quick release clamps on base for easy cleaning
Adjustable direction of hopper and base
1 1/4″ x 12′ flex PVC material hose

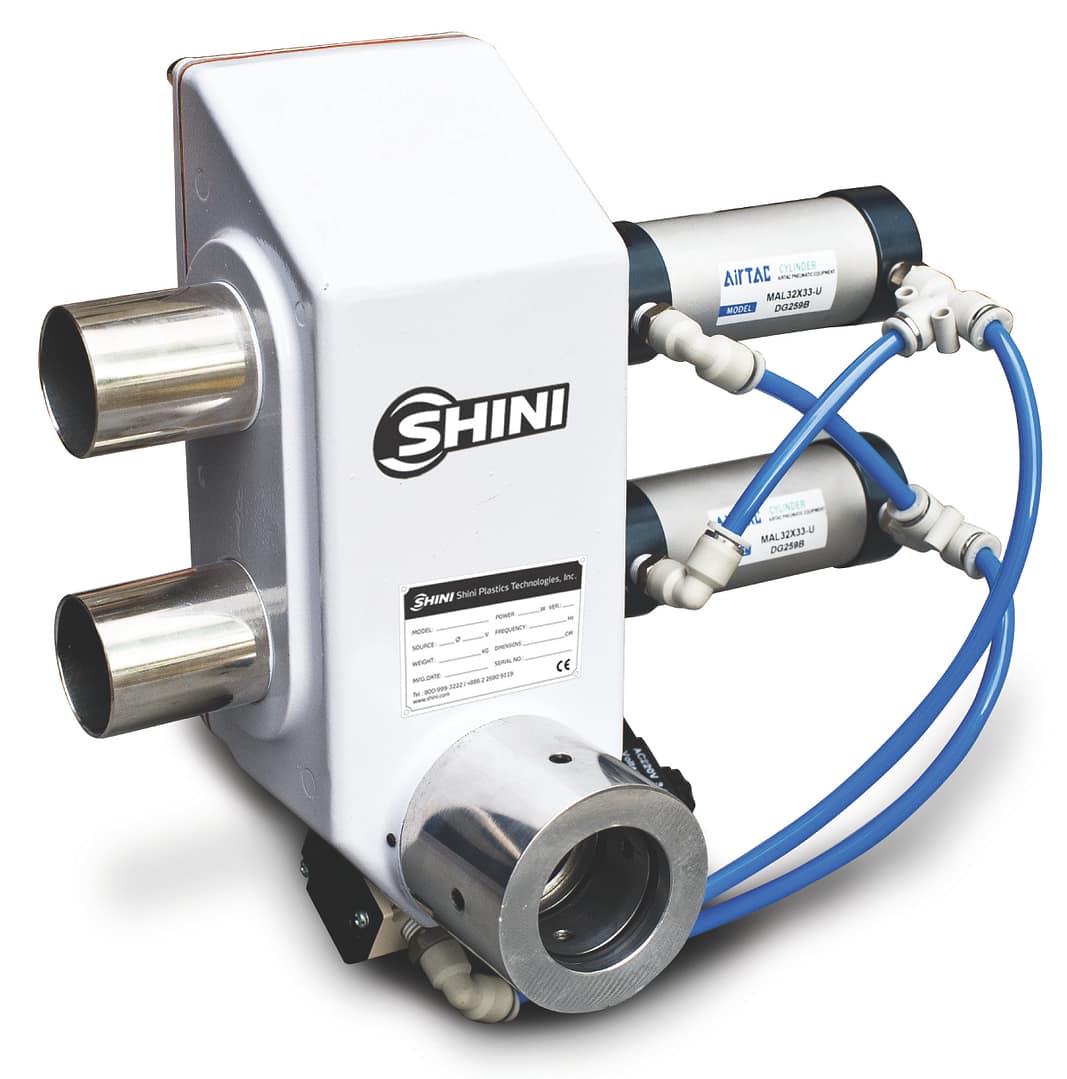

PROPORTIONAL VALVES SPECS.
Model # Maximum Material Flow Cap. (lbs/hr) Pipe Size
SPV-38U 770 1.5
SPV-50U 1200 2
SPV-38UC 770 1.5
SPV-50UC 1200 2
DESCRIPTION

Proportional Valves from Shini USA are designed to provide consistent control of pressure and flow. Highly efficient in mixing the virgin and regrind material, the Shini USA, Division of Budzar Industries Proportional Valve is easily installed, mounts directly onto the hopper loader or the pipeline.
