SCREW PLUG CIRCULATION HEATERS

← Circulation Heaters

Flanged Circulation Heaters →

Screw Plug Circulation Heaters feature Incoloy® 840 sheath for the widest coverage of applications and temperatures, NEMA 4 moisture tight enclosure, sediment drain, and NPT inlet/outlet.

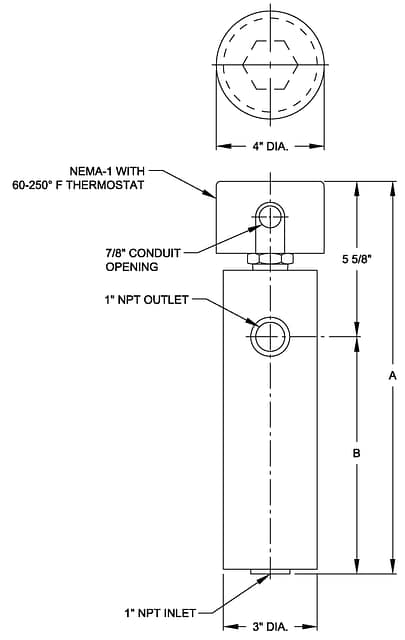

1" NPT SCREW PLUG CIRCULATION HEATERS

1″ Brass NPT 60-86 wsi
1″ Steel NPT 20 & 23 wsi
Volts
1-Ph.
Watts
A
B
Wt.
(lbs.)
Watts
A
B
Wt.
(lbs.)
120
240
1500
18
12 3⁄8
14
500
19 1⁄8
13 1⁄2
14
120
240
2000
18
12 3⁄8
14
750
19 1⁄8
13 1⁄2
14
120
240
2500
22
16 3⁄8
16
1000
22 3⁄8
16 3⁄4
17
120
240
3000
22
16 3⁄8
16
1500
29 3⁄8
23 3⁄4
20

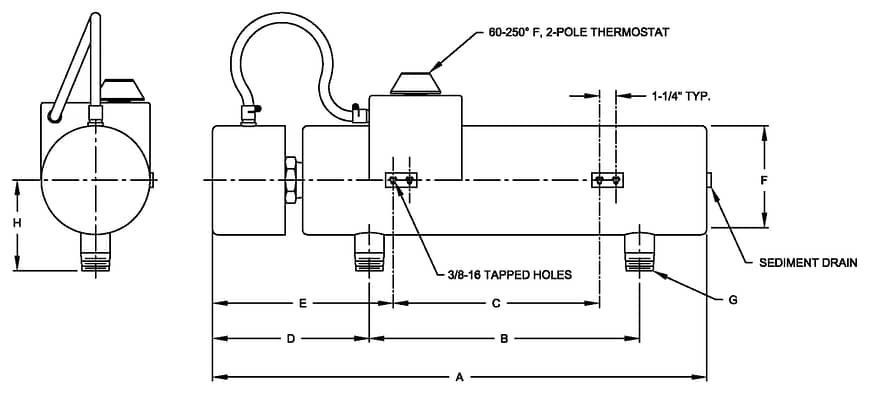

2" & 2 1/2" NPT Screw plug circulation heaters
Plug Size
D
E
F
G
H
2″ NPT
6 3⁄4“
6″
5″
3⁄4” NPT
4 1⁄2“
2 1⁄2” NPT
7 1⁄2“
7 1⁄4“
5 1⁄4“
1″ NPT
 5 1⁄2“

2″ Brass NPT – 48 wsi
2″ Steel NPT – 23 wsi
Volts
1-Ph.
KW
B
C
Wt.
(lbs.)
KW
A
B
C
Wt.
(lbs.)
120/240
240/480
3
24 1/4
15
–
20
1.5
23 1/4
15
–
20
120/240
240/480
4
31 1/4
23
–
27
2
31 1/4
23
–
27
120/240
240/480
5
31 1/4
23
–
27
2.5
31 1/4
23
–
27
120/240
240/480
6
31 1/4
23
–
27
3
31 1/4
23
–
27
120/240
240/480
8
38 3/4
30 1/2
26
36
4
38 3/4
30 1/2
26
36
120/240
240/480
10
46 1/4
38
26
43
5
46 1/4
38
26
43
120/240
240/480
12
54 1/4
46
39
50
6
54 1/4
46
39
50
21/2” Brass NPT – 48 wsi
21/2” Steel NPT – 23 wsi
Volts
3-Ph.
KW
A
B
C
Wt.
(lbs.)
KW
A
B
C
Wt.
(lbs.)
240
480
6
31
22 1/2
16 1/2
65
3
31
22 1/2
16 1/2
70
240
480
7.5
31
22 1/2
16 1/2
65
3.75
31
22 1/2
16 1/2
70
240
480
9
31
22 1/2
16 1/2
65
4.5
31
22 1/2
16 1/2
70
240
480
12
41
32 1/2
26 1/2
76
6
41
32 1/2
26 1/2
80
240
480
15
55
45
39
93
7.5
55
45
39
96
240
480
18
55
45
39
95
9
55
45
39
98
