Flanged Circulation Heaters feature Incoloy® 840 sheath for the widest coverage of applications and temperatures, NEMA 4 moisture tight enclosure, sediment drain, and 150 lb flanged inlet/outlet on 10″ heaters and above.

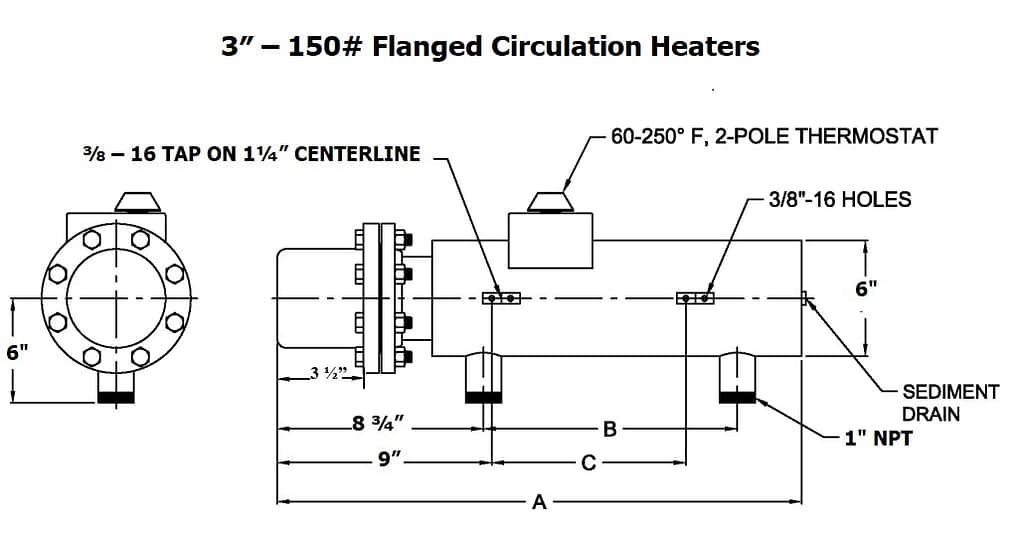

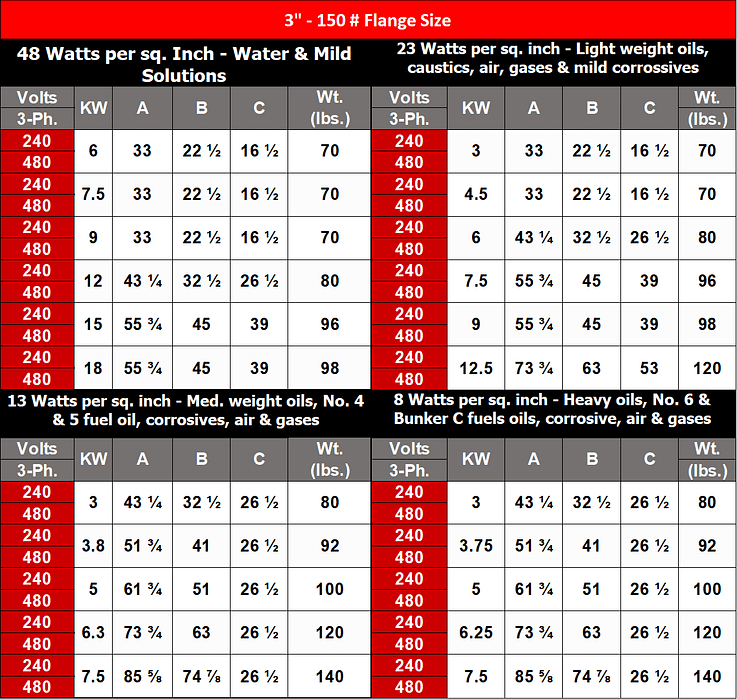

STANDARD 3" - 150# FLANGED CIRCULATION HEATERS

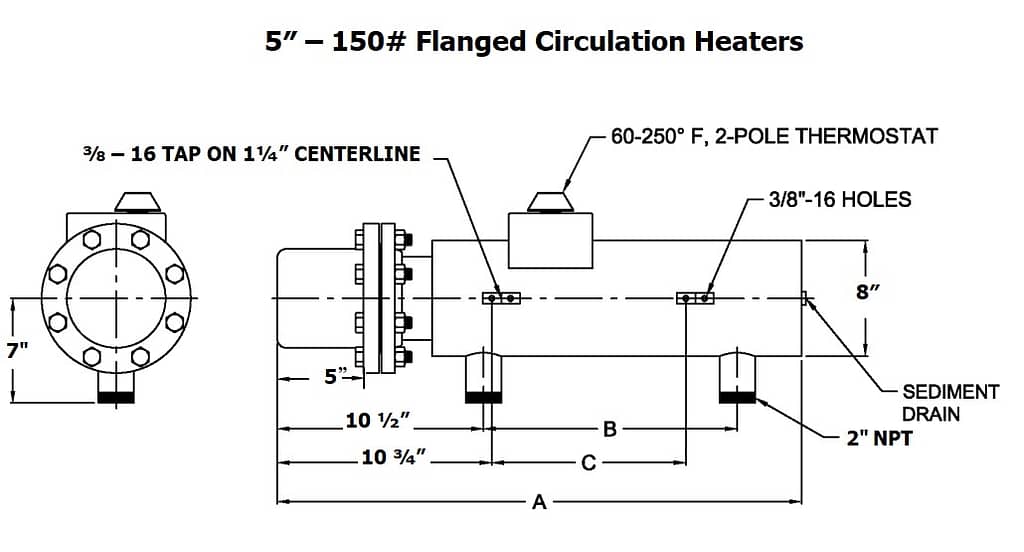

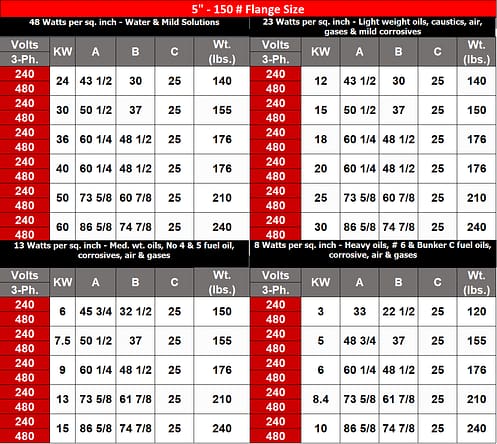

standard 5" - 150# flanged circulation heaters

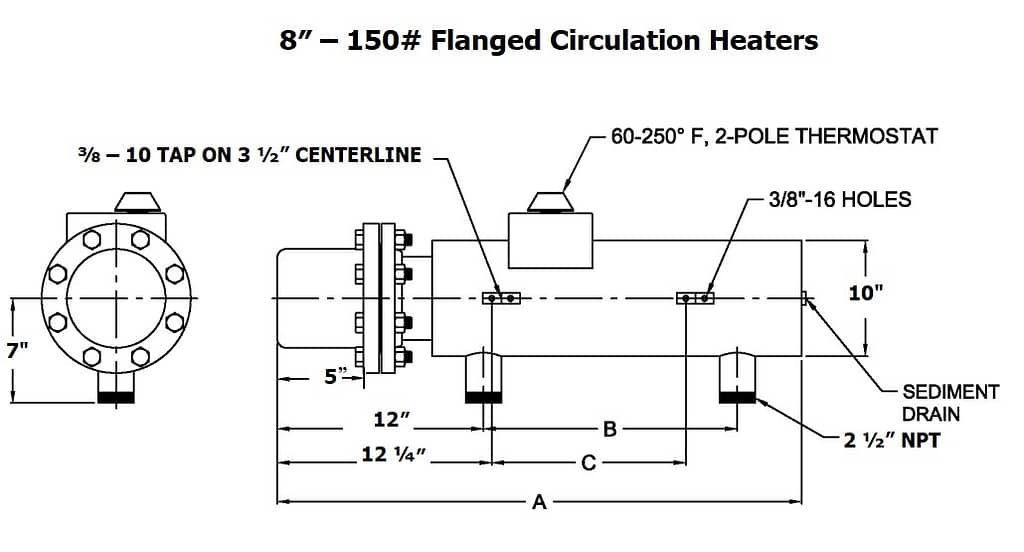

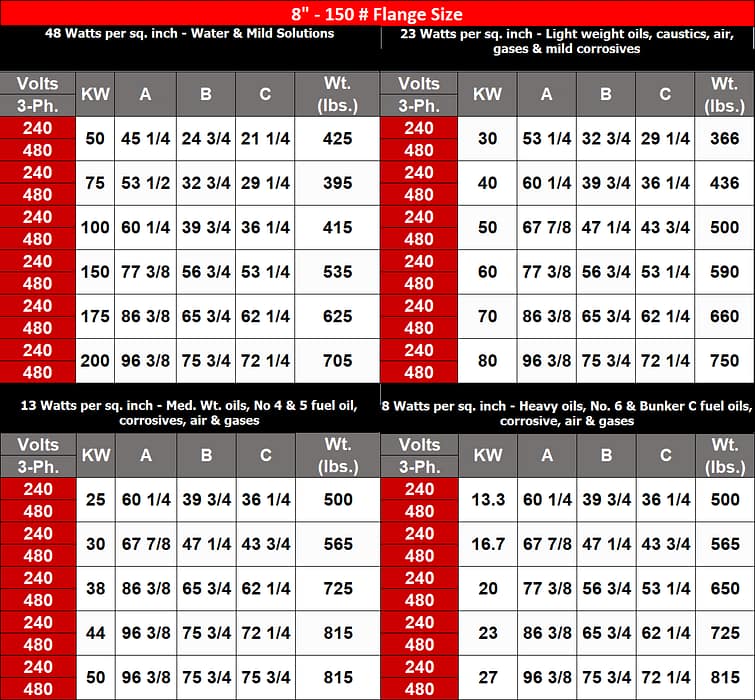

STANDARD 8" - 150# FLANGED CIRCULATION HEATERS

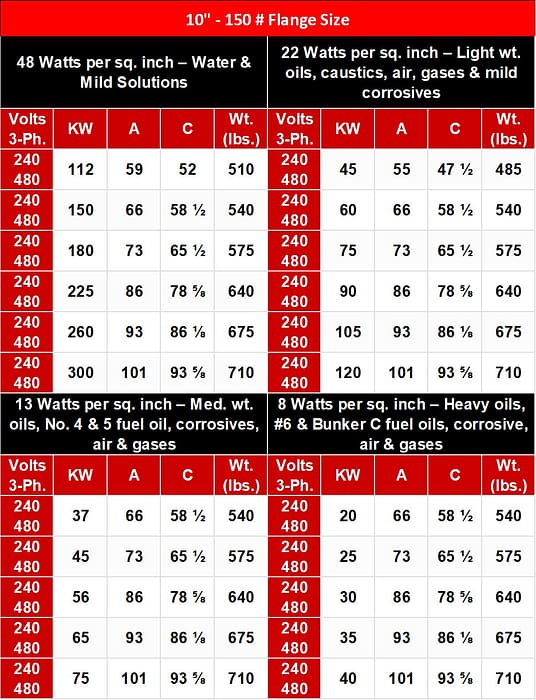

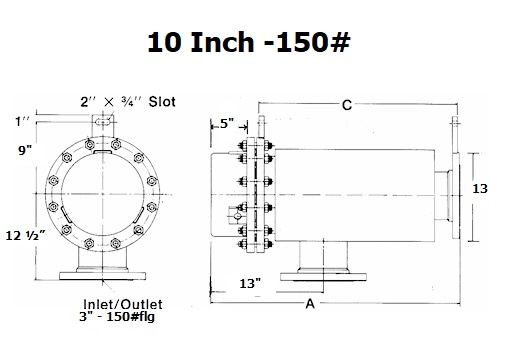

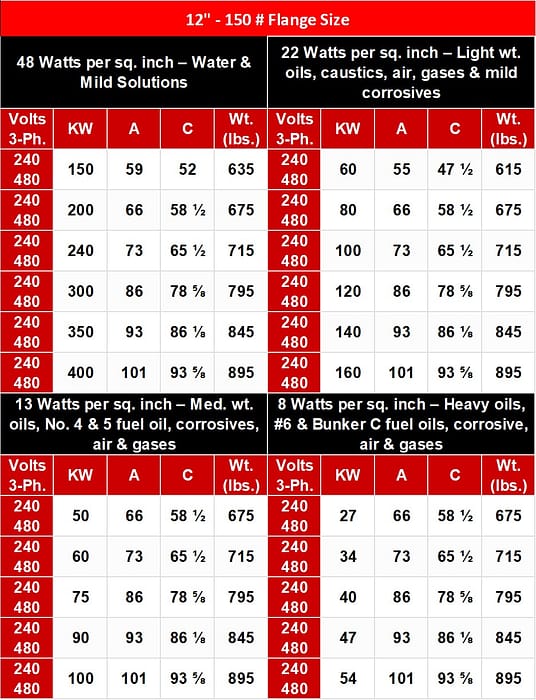

STANDARD 10" - 150# FLANGED CIRCULATION HEATERS

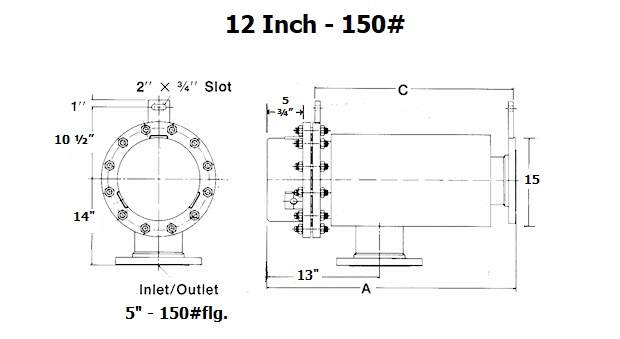

standard 12" - 150# flanged circulation heaters

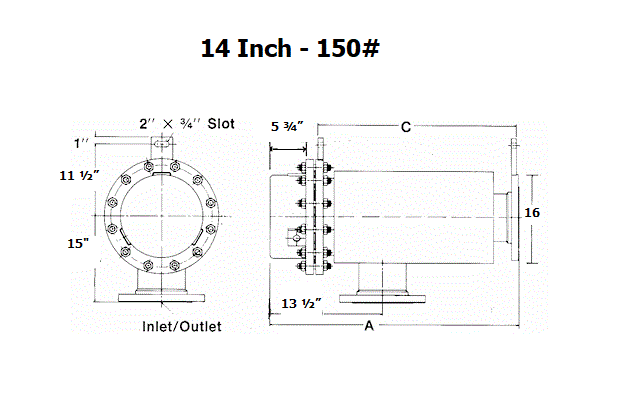

STANDARD 14" - 150# FLANGED CIRCULATION HEATERS
