SUCTION OIL CIRCULATION HEATERS

← High Capacity Circulation Heaters

Circulation Heaters Options →

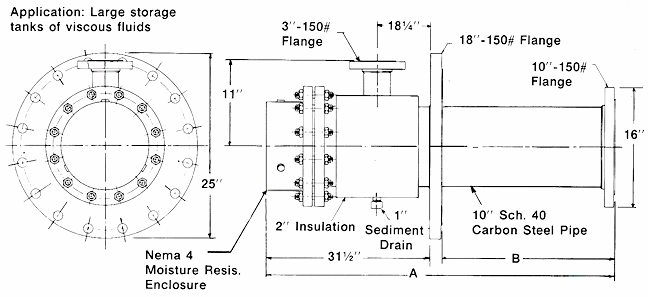

Suction Oil Circulation Heaters feature Incoloy® 840 sheath for the widest coverage of applications and temperatures, NEMA 4 moisture tight enclosure, and sediment drain. They are suited for large storage tanks of viscous fluids.
Volts
3-Ph.
KW
A
B
# Elements
Watt Density
Wt.
(lbs.)
240
480
30
88
78 ¾
27
5 wsi
800
240
480
35
94
84 ¾
27
5 wsi
865
240
480
40
100
91
27
5 wsi
945
240
480
55
106
97
36
5 wsi
1000
