HOT WATER Temp. CONTROLLERS specs.
| Model# | Heater Capacity | Pump Flow |
| STM-910W | 9 kW | 15 GPM @ 30 PSI |
| STM-12220w | 12 kW | 15 GPM @ 30 PSI |
| STM-2440W | 24kW | 35 GPM @ 30 PSI |
description
The Shini USA hot water temperature control module (mold temperature controller) delivers temperature control with a +/-1°F accuracy, self-tuning, non-ferrous piping, full diagnostics and a non-proprietary controller. With its compact size the Shini USA hot water temperature control module will fit anywhere and will stand up to even the harshest of operating conditions.

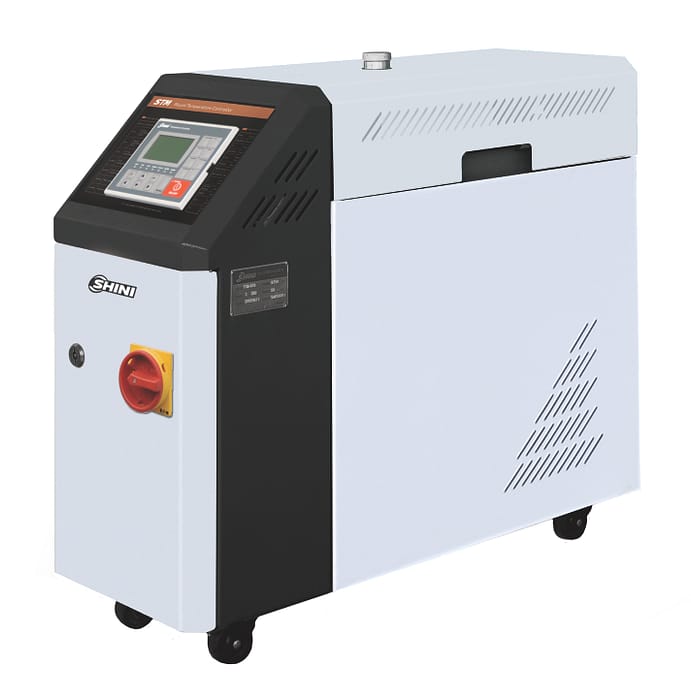

HOT OIL TEMPERATURE CONTROLLERS SPECS.
| Model# | Heater Capacity | Pump Flow |
| STM-910- O | 9 kW | Closed Loop Shell & Tube |
| STM-12220-0 | 12 kW | Closed Loop Shell & Tube |
| STM-2440-0 | 24kW | Closed Loop Shell & Tube |
350º Porable hot oil unit w/ mag drive seal-less pump SPECS.
| Model # | Heater Capacity | Cooling Method |
| STM-910-LT-M-O | 9kW | Closed Loop Shell & Tube |
| STM-1220-LT-M-O | 12k | Closed Loop Shell & Loop |
| STM-2440-LT-M-O | 24 kw | Closed Loop shell |

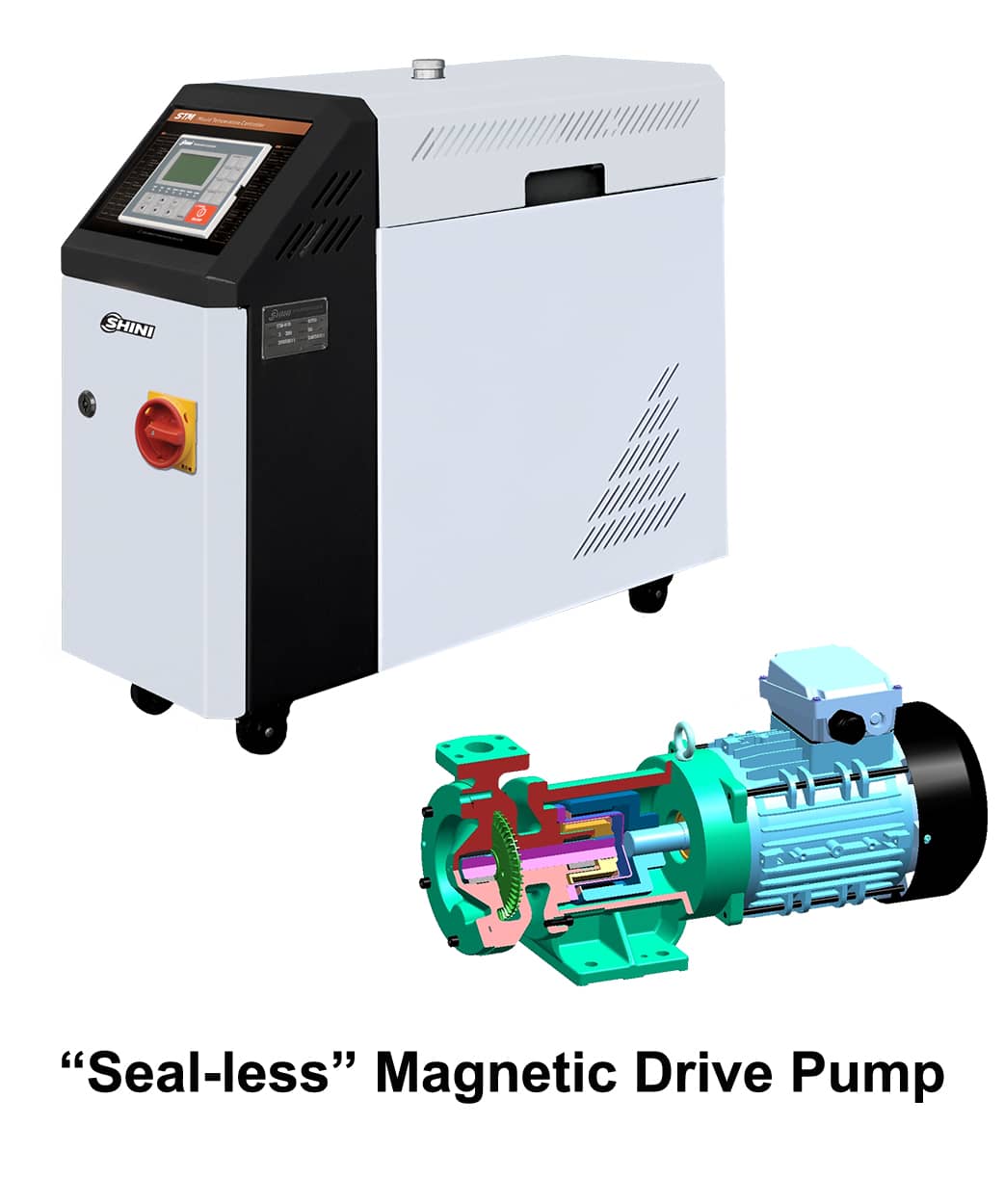

450º Porable hot oil unit w/ mag drive seal-less pump SPECS.
| Model # | Heater Capacity | Cooling Method |
| STM-907-HT | 9kw | Closed Loop Shell & Tube |
| STM-1215-HT | 12kW | Closed Loop Shell & Tube |
| STM-2440-HT | 24 kW | Closed Loop Shell & Tube |
description
The Shini USA industrial temperature control hot oil systems are fluid circulating units that control the application temperatures. We offer both low-temperature (350°F) hot oil units and high-temperature (500°F) systems.
With a one-gallon capacity, each hot oil unit features an Omron temperature controller to monitor process temperature throughout the heating and cooling process. The units also come equipped with a centrifugal-type pump, discharge pressure gauge and closed loop cooling.

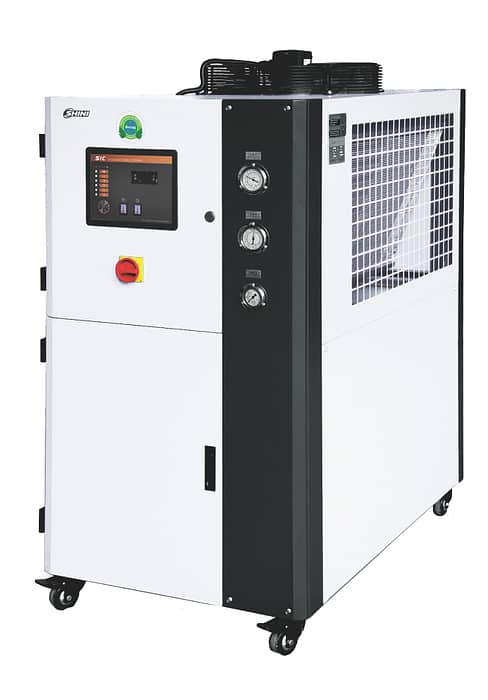

AIR-COOLED PORTABLE CHILLERS
| Model# | Ton | Pump Horsepower |
| SIC-12A-R2-P | 5 | 1 |
| SIC-24A-R2-P | 10 | 2.5 |
| SIC-38A-R2-P | 15 | 3 |
description
These newly designed portable air-cooled chillers with a 45-95°F cooling range feature environmentally friendly R410A refrigerant. Designed with a vertical air discharge design that enhances comfort in your plant by carrying heat up and away from your processes and your operators, the air-cooled chillers have a +/-1°F accuracy.
Other standard features of the portable air-cooled chillers we supply include:
- Finger-safe electrical components
- Fill diagnostics panel
- Non-ferrous construction
- Fully insulated reservoir
- Brazed plate exchanger
- 10´ power cord
- Pressure gauges
- Hot gas bypass valve
- Automatic fill valve
- Fin style condenser
- Liquid line solenoid valve and shut-off valve
- Filter dryer and moisture indicator
- Head pressure control via fan motor cycling
