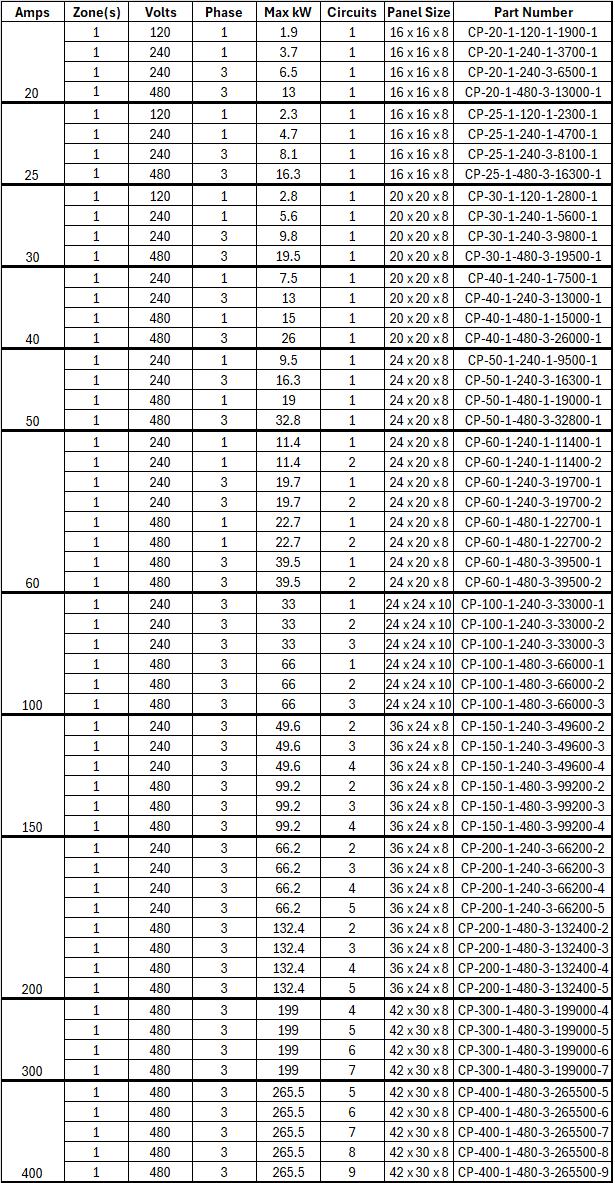

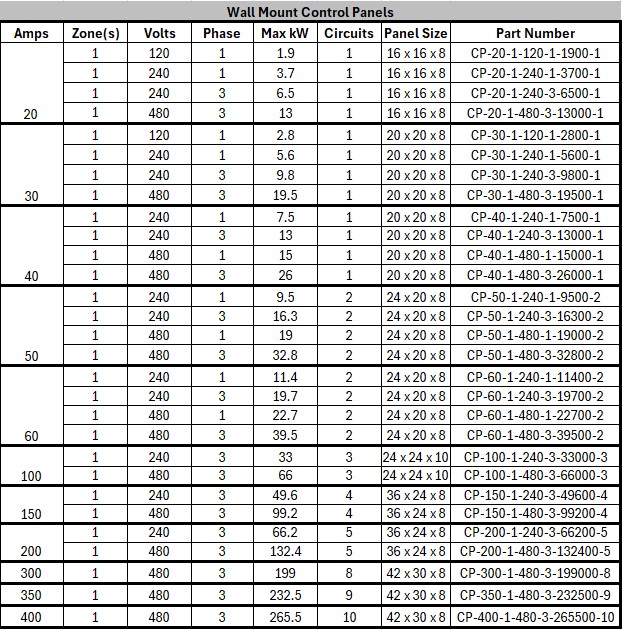

STANDARD WALL MOUNT CONTROL PANELS
Standard Features Included |
|||||||
| 1. NEMA Type 4 or NEMA Type 12 – Both Painted Steel Wall Mount Enclosures | |||||||
| 2. Main Disconnect w/Breaker | |||||||
| 3. Proportional Integral Derivative (PID) Digital Control w/Process Alarm | |||||||
| 5. Power Cycling Devices Solid State Relay (SSR) or Silicone Controlled Rectifier (SCR) | |||||||
| 6. Control Power On/Off Selector Switch | |||||||
| 7. Power Light On (Green) | |||||||
| 8. Alarm Light (Red) | |||||||
| 9. Reset Push Button Mometary (Black) | |||||||
| 10. Alarm Dry Contact NO/NC (For Customer Supplied OK To Run Signal) | |||||||
| 11. Remote Run/Stop (DI Inputs) | |||||||
| 12. Retransmission 4-20mA or 0-10 VDC | |||||||
| 13. Remote Set Point 4-20mA or 0-10 VDC | |||||||
| 14. High-Limit Control | |||||||
| 15. All Necessary Pre-Wiring, Sub-Fusing, and Terminal Blocks | |||||||
| 16. Functionally Tested | |||||||
| 17. Schematic 2-D CAD Design |
**Special Options: Consult with Southeast Thermal Systems**
-
- Process Control Options: Ethernet, Modbus TCP/Modbus RTU, PLC, HMI, Ethernet/IP
- HMI Operator Interface: Operator Interface touch screens are available and come pre-programmed by our engineers. Otherwise, general controls and indicators will be included. Available in 4 full color sizes: 4.3″, 7″, 10″ & 15″. Built-in paperless data logger included.
- PLC Automation/Process Control:
- Custom and Hazardous Area offerings available.
- Factory pre-wired in accordance with the National Electrical Code, NFPA79, UL508A and any special local electrical codes required by the customer. (UL508A certification available when requested.)
