A mica core produces a thin, efficient heater.  Heat from the precisely wound resistance element is quickly transferred to the working surface for fast heat-up and response.  Mica provides excellent dielectric strength and heat transfer capability for long heater life.  The mica core is encased in a continuous corrosion resistant sheath and formed.  All full mica band heaters are designed with closed ends to protect against contamination.  Maximum sheath temperature is 800°F.

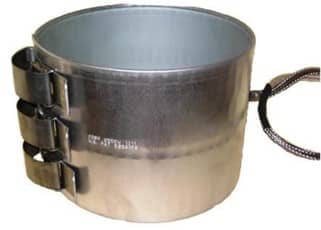

The THINBAND heater is patented redesign of the Mica Band. THINBAND heaters deliver fast and install easily, keeping costs down and machines running.

• Sheath Temperature to 480°C (900°F)
• Watt Densities to 55 W/in² (8.5 W/cm²)

 FEATURES & BENEFITS

Flexible, one-piece design

• Makes installation easier on plastic processing equipment because it can open to full diameter of the barrel without internal damage to the heater
• Installs on barrel without removing other band heaters already in place

Only one set of leads or terminals

• Cumbersome, two-piece replacement band heaters with straps require two sets

Quick Clamp

• Opens to fit over barrels and snaps in place with one easy flip of its latching lever
• No need to remove other heaters

Permanently attached clamping bars

No Folds on the outside of the heater

• Contamination resistance
