GENERAL THERMOWELL INFORMATION

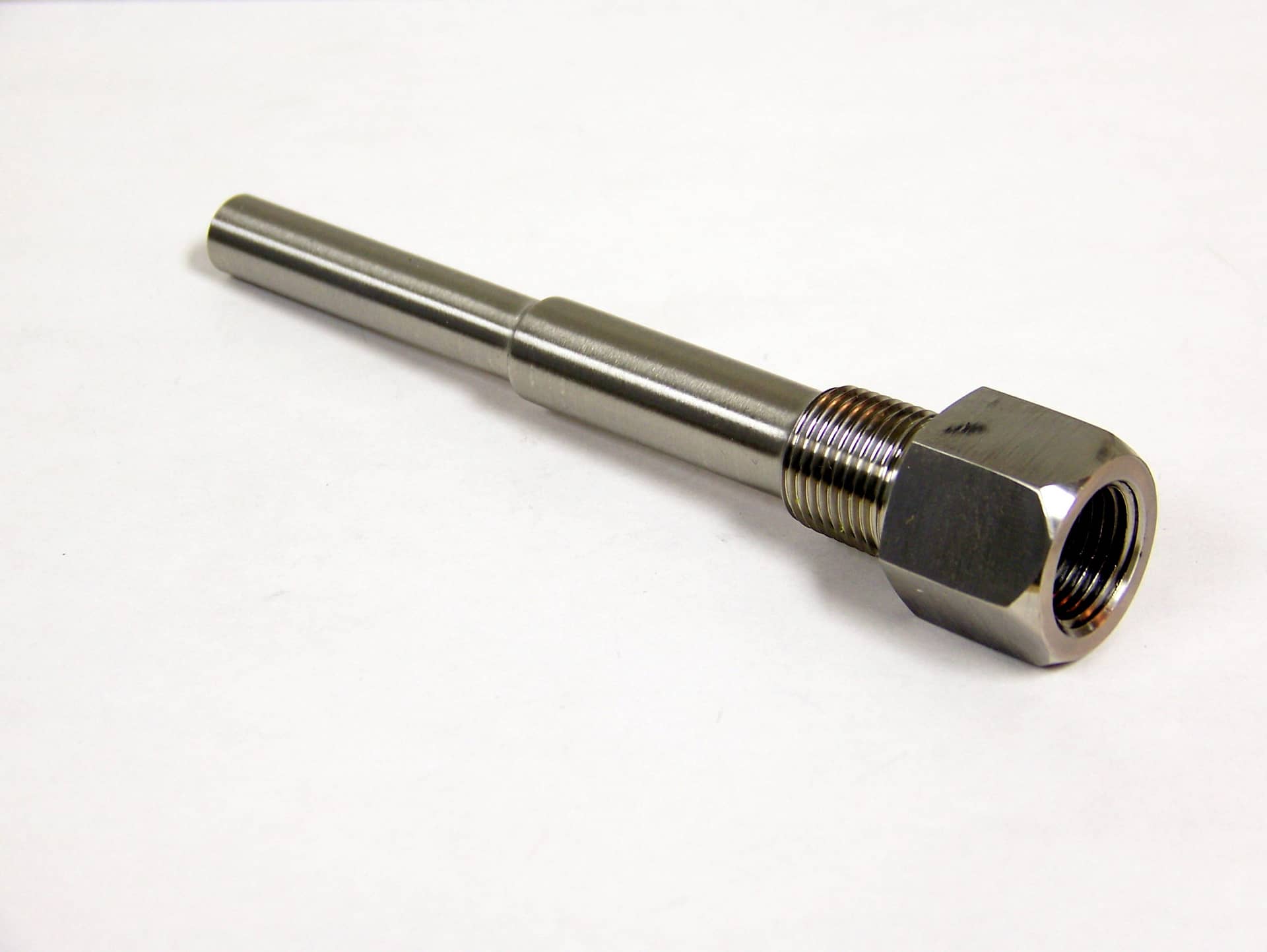

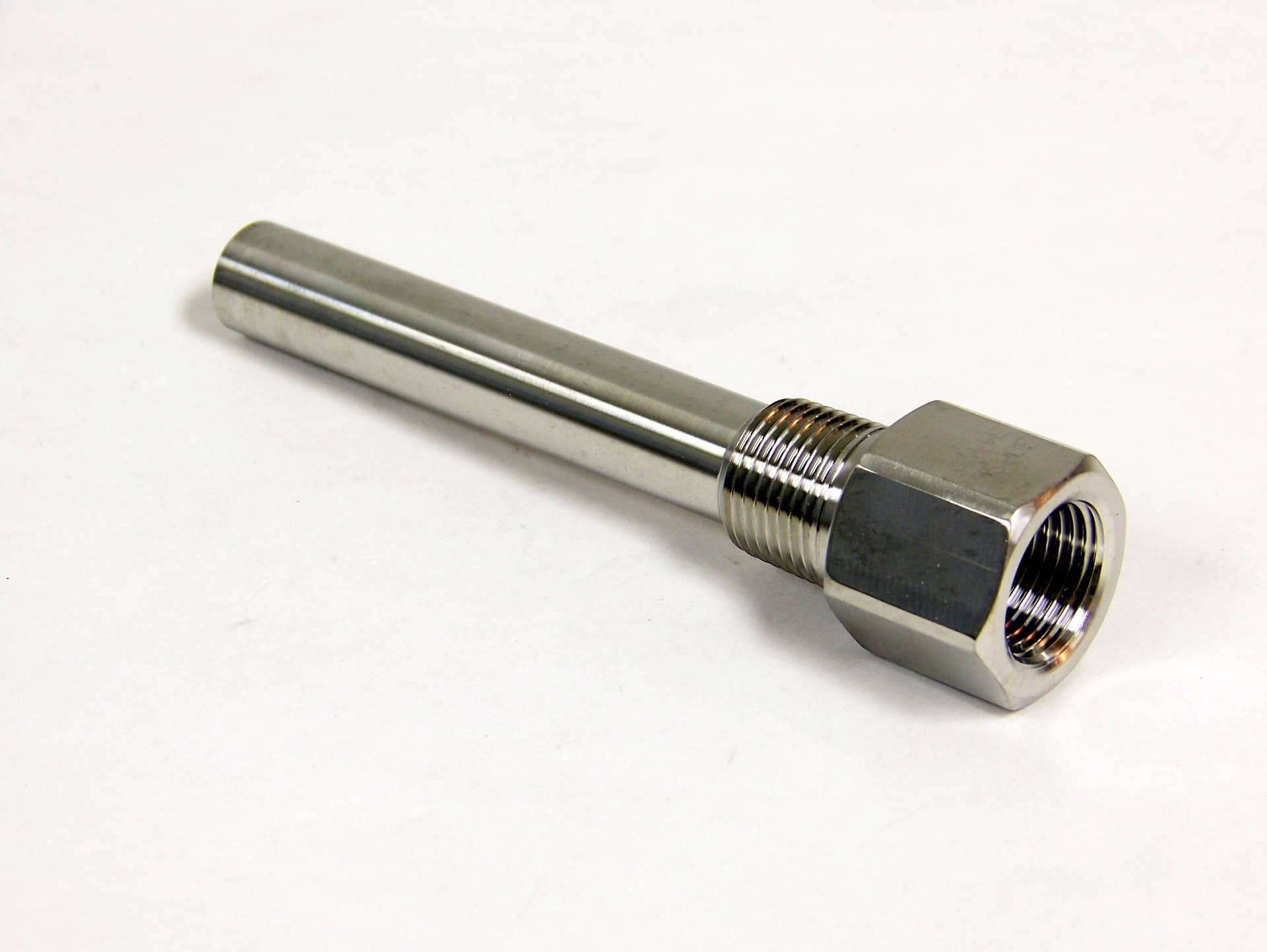

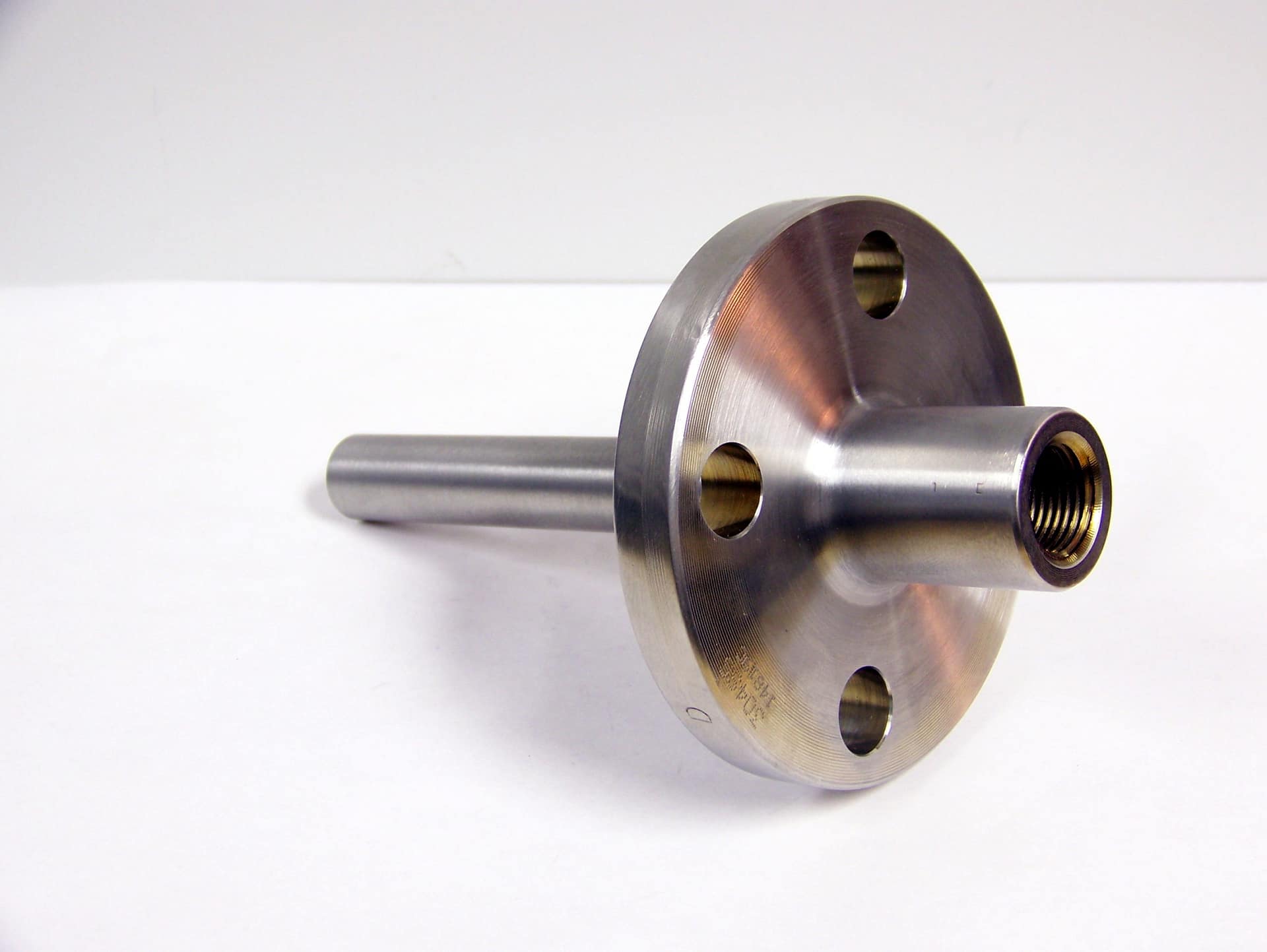

STS offers a complete line of thermocouple and RTD thermowell assemblies and thermowells. Whether you are looking for thermowell assemblies for a large industrial project or a few units, STS can meet your requirements. Standard well materials are 304 stainless steel, 316 stainless steel, brass and carbon steel. custom well materials and configurations are available. Contact STS for details.

Applications:

· Chemical and Petrochemical
· Oil refineries
· Power plants
· Water and sanitation treatment plants
· High pressure fluid lines
· Tanks

TECHNICAL INFORMATION
TYPICAL CONFIGURATIONS
THERMOWELL PART NUMBER BUILDER
REPLACEMENT SENSORS FOR THERMOWELLS PART NUMBER BUILDER

Mineral Insulated (MGO) Sensors



Temperature Transmitters



Resistance Temperature Detectors

Industrial Thermocouples





Thermowells







Custom Designed sensor
