Shell tube heat exchangers

Shell and tube heat exchangers represent the pinnacle of engineering excellence, meticulously designed to handle the demanding conditions of high-pressure and high-temperature applications. Each unit is crafted to cater to a diverse range of operational needs, ensuring optimal performance and reliability across various industries. With a robust selection of sizes and configurations, these heat exchangers offer unparalleled efficiency and adaptability, making them the premier choice for those seeking to harness thermal energy with precision and effectiveness. Experience the difference of superior design and engineering as we help you achieve your process heat goals with confidence.

CS-STC Series

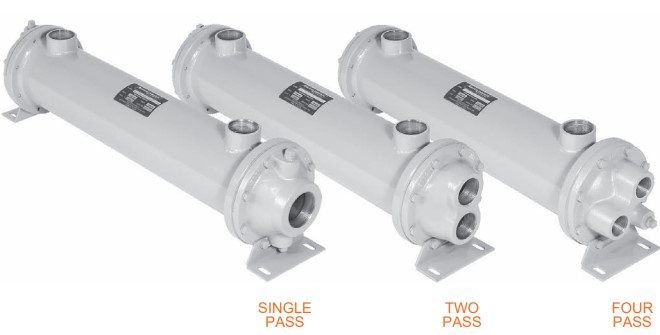

Shell Tube Heat Exchanger CS-STC

CS 2000

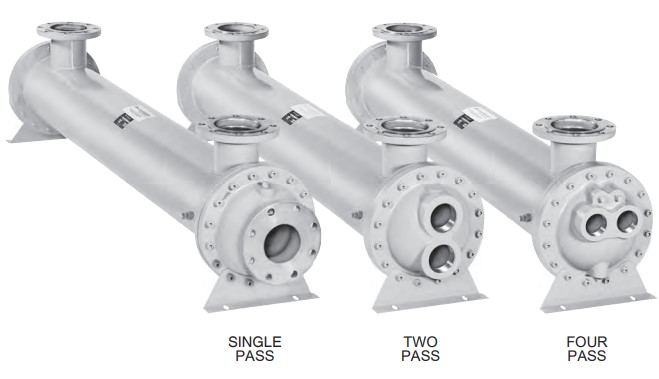

Shell Tube Heat Exchanger CS 2000

CS2400-4800

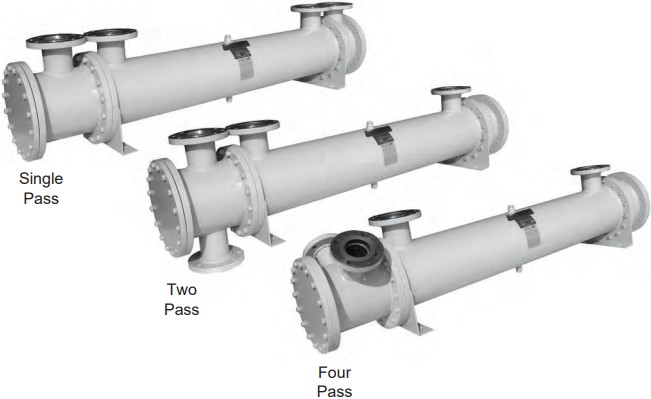

Shell Tube Heat Exchanger CS2400-4800

STC Series: Similar in design to CS series with fixed tube construction and NPT connections made of 316 stainless steel. Standard sizes from 3” through 8” diameters. Standard one, two, and four pass models are available. Larger diameter units available upon request. Can be customized to fit your requirements.

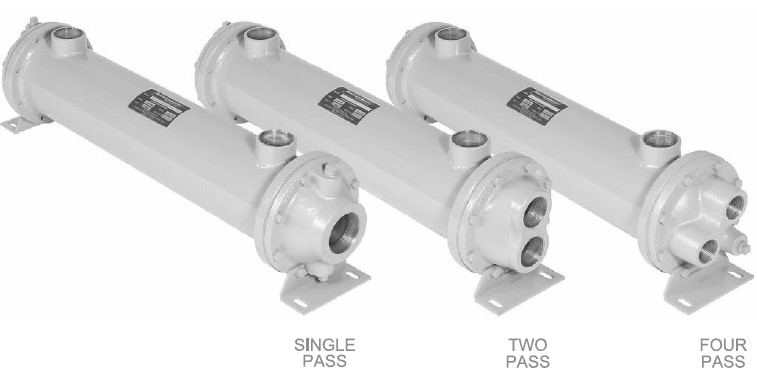

CS Series:  Fixed tube construction heat exchangers with NPT connections. Made of steel with copper cooling tubes and cast iron end bonnets. Standard sizes from 3” through 8” diameters. Standard one, two, and four pass models are available. Options include 90/10 copper nickel and 316 stainless steel cooling tube, and zinc anodes. Can be customized to fit your requirements.
