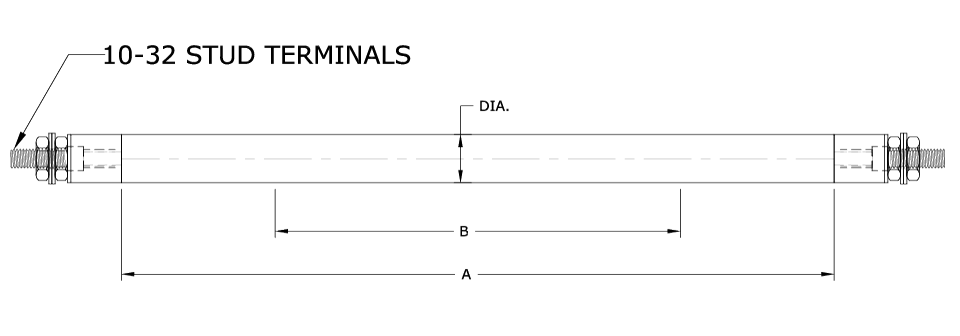

STRAIGHT LENGTH TUBULAR HEATING ELEMENTS

SHEATH
LENGTH
“A”
HEATED
LENGTH
“B”
WATTS
VOLTS
27 ¼
21 ¼
750
240
480
38 ⅜
28 ⅜
1000
240
480
43
37
1250
240
480
52 ¾
42 ¾
1500
240
480
68 ¾
58 ¾
2000
240
480
83 ¾
73 ¾
2500
240
480
98 ¼
88 ¼
3000
240
480
106 ¼
96 ¼
3333
240
480
132 ¼
122 ¼
4167
240
480
158 ¼
148 ¼
5000
240
480

SHEATH
LENGTH
“A”
HEATED
LENGTH
“B”
WATTS
VOLTS
15 ¼
9 ¾
250
120
240
20 ¼
15 ¾
375
120
240
27 ¼
21 ¾
500
120
240
42 ¼
36 ¾
750
120
240
55 ½
50
1000
120
240
80 ½
75
1500
120
240

SHEATH
LENGTH
“A”
HEATED
LENGTH
“B”
WATTS
VOLTS
15
10
400
240
480
20
15
600
240
480
25
20
800
240
480
30
25
1000
240
480
35
30
1200
240
480
40
35
1400
240
480
45
40
1600
240
480
50
45
1800
240
480
55
50
2000
240
480
60
55
2200
240
480
65
60
2400
240
480
70
65
2600
240
480
75
70
2800
240
480
80
75
3000
240
480
90
85
3500
240
480
100
95
4000
240
480
110
105
4500
240
480
120
115
5000
240
480

SHEATH
LENGTH
“A”
HEATED
LENGTH
“B”
WATTS
VOLTS
15
10
300
120
240
20
15
400
120
240
25
20
600
120
240
30
25
800
120
240
35
30
900
120
240
40
35
1000
120
240
45
40
1200
120
240
50
45
1400
120
240
55
50
1600
120
240
60
55
1700
120
240
65
60
1800
120
240
70
65
2000
120
240
75
70
2200
120
240
80
75
2400
120
240
90
85
2600
120
240
100
95
3000
120
240





SHEATH
LENGTH
“A”
HEATED
LENGTH
“B”
WATTS
VOLTS
15
10
250
120
240
20
15
400
120
240
25
20
500
120
240
30
25
600
120
240
35
30
800
120
240
40
35
900
120
240
45
40
1000
120
240
50
45
1100
120
240
55
50
1200
120
240
60
55
1400
120
240
65
60
1500
120
240
70
65
1600
120
240
75
70
1800
120
240
80
75
2000
120
240





TUBULAR HEATING OPTIONS

THREADED FITTINGS

Threaded fittings are furnished with nuts and optional fiber gaskets, washers and lockwashers. Fittings are silver soldered, welded or mechanically pressed (staked) to the sheath. Welding requires sheath and fitting material compatibility. Standard elements may be provided with two fittings, one for each terminal end. Two-pass elements may be provided with only one fitting.

THREADED FITTING CHART
C
Element Diameter		 Fitting Part No. Shoulder Type Material A
Thread Size		 B
Length		 D
Shoulder Thk		 E
Head Size		 F
Min. Thrd.
Length
0.250/0.260 60000425 Hex SST 7/16-20UNF 0.56 0.13 0.63 0.425+
0.250/0.260 60000428 Hex BRS 1/2‐20UNF 0.50 0.13 0.75 0.43
0.250/0.260 86-2-C-3 Round BRS 1/2‐20UNF 0.63 0.13 0.75 0.55
0.26 86-3-C-74 Hex BRS 1/2‐20UNF 0.69 0.19 0.75 0.61
0.32 60000326 Hex SST 7/16-20UNF 0.56 0.13 0.63 0.425+
0.32 1007121 Round BRS 7/16-28UNEF 0.56 0.31 0.75 0.51
0.32 86-22-C-1 Hex BRS 1/2‐20UNF 0.50 0.19 0.75 0.43
0.32 86-22-ZC-2* Hex BRS 1/2‐20UNF 0.50 0.19 0.75 0.43
0.32 86-3-UZ-1 Hex 303 SST 1/2‐20UNF 0.63 0.13 0.75 0.488+
0.32 60000431 Round SST 1/2‐20UNF 0.81 0.13 0.75 0.675+
0.32 1007139 Round BRS 1/2‐20UNF 0.88 0.31 0.75 0.80
0.32 86-37-C-1 Hex BRS 1/2‐20UNF 1.00 0.25 0.75 0.93
0.32 1007219 Round BRS 9/16-18UNF 0.50 0.13 1.00 0.42
0.32 1007142 Round BRS 5/8-18UNF 0.50 0.31 1.00 0.42
0.32 86-62-C-1 Hex BRS 5/8-18UNF 0.75 0.19 0.88 0.67
0.32 60000384 Hex SST 5/8-18UNF 0.81 0.13 0.88 0.73
0.38 60000324 Hex BRS 1/2‐20UNF 0.56 0.13 0.75 0.49
0.38 60000198 Hex 303 SST 9/16-18UNF 0.69 0.13 0.75 0.542+
0.38 86-3-UZ-81 Hex 303 SST 9/16-18UNF 1.00 0.13 0.88 0.854+
0.43 86-47-C-1 Round BRS 9/16-18UNF 1.00 0.25 0.75 0.92
0.43 86-36-C-2 Hex BRS 5/8-18UNF 0.50 0.19 0.88 0.42
0.43 60000320 Hex SST 5/8-18UNF 0.63 0.13 0.88 0.48
0.43 86-36-C-1 Hex BRS 5/8-18UNF 0.75 0.19 0.88 0.67
0.43 60000396 Hex SST 5/8-18UNF 1.00 0.13 0.88 0.854+
0.43 86-3-C-7 Hex BRS 5/8-18UNF 1.06 0.19 0.88 0.98
0.43 60000352 Hex BRS 3/4-16UNF 0.81 0.19 1.00 0.72
0.43 60000337 Hex SST 3/4-16UNF 1.06 0.19 1.00 0.97
0.48 1007127 Round BRS 5/8-18UNF 0.56 0.31 1.00 0.48
0.48 1006846*** Round STEEL 5/8-18UNF 0.56 0.13 1.00 0.417+
0.48 1007118 Round BRS 5/8-18UNF 0.81 0.31 1.00 0.73
0.48 1007276 Round SST 5/8-24UNEF 0.75 0.13 1.00 0.625+
0.48 1007279 Hex SST 3/4-16UNF 0.38 0.19 1.00 0.28
0.48 1000058** Hex STEEL 3/4-16UNF 0.50 0.13 0.88 0.41
0.48 1007225 Hex BRS 3/4-16UNF 0.88 0.25 1.00 0.78
0.48 1007228 Hex SST 3/4-16UNF 0.88 0.25 0.88 0.78
0.48 1007273 Hex SST 3/4-16UNF 1.06 0.19 1.00 0.97
0.49 60000389 Hex BRS 5/8-18UNF 0.50 0.13 0.88 0.42
0.49 60000138 Hex SST 5/8-18UNF 0.88 0.19 0.88 0.729+
0.49 60000317 Hex SST 3/4-16UNF 0.56 0.13 1.00 0.47
0.49 60000070 Hex SST 3/4-16UNF 1.06 0.19 1.00 0.97
0.63 60000410 Hex STEEL 7/8-14UNF 1.00 0.13 1.13 0.83+
0.63 60000373 Hex SST 7/8-14UNF 1.13 0.13 1.13 0.955+
0.63 60000008 Hex SST 7/8-14UNF 1.38 0.13 1.13 1.205+
0.63 60000375 Round STEEL 7/8-14UNF 1.88 0.13 1.25 1.705+

+ Fitting has a 1/16” weld projection not included in the “F” dimension shown. Consult factory for details.
* Tin plated brass
** This fitting is copper plated steel, normally furnished on finned tubular elements with palnut type locknuts standard. Gaskets are not furnished unless specified.
*** Nickel plated steel
Other fittings available, contact factory.

MOUNTING PLATES

MOUNTING PLATES

Mounting plates provide a simple, convenient means of holding elements in place in an airstream and other applications where the element is not immersed in a liquid. Stainless steel plates are mechanically pressed (staked) or tack welded to sheathed elements.
The mounting plates shown to the right are standard configurations for .475” diameter elements. Consult factory for other diameters and configurations.

Heating Element
Configuration		 Mounting Plate
Type Material
2-1/2” C-C U-Bent I Stainless
Straight or Two-Pass II Stainless



terminal assembly options

Terminal # 1

Threaded Terminal (standard)

Description:
Stainless steel stud with threaded length
Optional:
Insulators available in silicone rubber (std) or optional mica or ceramic where available
Use:
For lead attachment in the field.
600V rating
Thread Sizes* OAL Standard INS Standard
(Insulator Dim)
6-32 1” 0.50”
8-32
10-32
1/4-20

* 6-32 thread is standard for .250 and .260
Element Diameters, 10-32 thread is standard for all other Diameters.
Other thread size, INS and OAL lengths available upon request.

Terminal # 2

Quick Connect Terminal

Description:
Standard 1/4” plated steel quick connect configuration

Optional:
Insulators available in silicone rubber (std) or optional mica or ceramic where available

Use:
For connection to matching female terminal on field funished lead. 30 amp max, see table for voltage rating
oltage
Range		 OAL Standard
(Straight terminal)		 OAL Standard
(90 Deg terminal)		 INS Standard
(Insulator Dim)
0-250V 0.75” 0.813” 0.25
251-600V 1” 1.063” 0.5
Terminal # 3



Weld Nut

Description:
Tab with internal thread is welded to
terminal pin and furnished with terminal
screw

Use:
Where it is more convenient to use this
terminal orientation.
Voltage
Range		 OAL Standard
(Straight terminal)		 OAL Standard
(90 Deg terminal)		 INS Standard
(Insulator Dim)
0-250V 0.813” 0.563” 0.25
251-600V 1.063” 0.813” 0.5
Terminal #4

Neoprene Insulated Leads

Description:
Standard Bare Copper or Tin Plated Copper Conductors insulated with Neoprene. 90oC Neoprene insulation with thickness of 5/64” or 1/16”.

Use:
Used primarily for internal wiring or wiring of defrost and refrigeration applications up to 600V. See Neoprene and Expoxy filled Terminal #5 for applications that require protection for wet (immersed) refrigeration type applications.
Neoprene exhibits supreme abrasion, cut-through oil, and solvent resistance. Neoprene is also known for its long service life and wide ranges of temperature and usability. It is remarkably flame retardant and self-extinguishing. (Military products often incorporate Neoprene.)

PVC Insulated Leads

Description:
Standard Bare Copper or Tin Plated Copper Conductors insulated with PVC. 105oC PVC insulation with thickness of 1/32”.

Use:
Used primarily for internal wiring of appliances up to 600V or with thickness of 1/16” for internal wiring of refrigeration equipment. See Valox Terminal #5 for applications that require protection for moist refrigeration type applications.
PVC is relatively inexpensive, with the potential to be used in diverse applications. It is flame, moisture, and abrasion resistant. It also holds up against gasoline, ozone, acids, and solvents. PVC should not be used when flexibility and an extended flex life are required at low temperatures.

Silicone Insulated Leads with Glass Braid (SRG)

Description:
Stranded Tin Plated Copper Conductors insulated with Silicone Rubber and Glass Braid. 200oC Silicone Rubber insulation with thickness of 1/32”.

Use:
Used primarily for internal wiring of applicances up to 600V. SRG is the standard suppied insulation material, with the exception of defrost and refrigeration applications.

Type TGGT Leads

Description:
Stranded Nickel-Clad Copper Conductors insulated with PTFE tapes and Glass Braid. 250oC PTFE tapes with thickness of 1/64” covered by wrapped fiberglass yarns and a treated glass braid jacket.

Use:
Used where the leadwire is exposed to high temperatures such as in industrial processing up to 600V.

Mica Insulated Leads with Glass Braid (MGT)

Description:
Stranded Nickel-Clad Copper Conductors insulated with Mica Glass Tapes and Glass Braid. 450oC Glass reinforced Mica tapes with thickness of 1/32” and a treated glass braid jacket.

Use:
Used where the leadwire is exposed to extremely high temperatures up to 600V.
Standard Supplied Wire Gauge Limit Amps
18 10
16 15
14 20
12 30
terminal # 5

Defrost Terminal

Description:
Neoprene or Valox, Injection Molded overmold terminal

OR

Epoxy Filled Metal Cup Terminal

Description:
Epoxy resin fills a metallic adapter enclosing the connection between lead wire and element cold pin.

Use:
Primarily defrost applications and others where water may drop on the terminal end. UL Recognized under File SA3254.
Type Material Type Element Sizes OD OAL Location Description
Overmold QC Neoprene One-Pass 0.250 – 0.315 0.4375 1.0625 Moist T Series
Epoxy Cup SM Epoxy/Metal One-Pass 0.315 0.5625 1.25 Wet Blank Series
Epoxy Cup LG Epoxy/Metal One-Pass 0.475 0.5625 1.75 Wet Blank Series
Overmold Neoprene One-Pass 0.250 – 0.375 0.4375 1.75 Wet W Series
Overmold Neoprene One-Pass 0.430 – 0.490 0.75 1.75 Wet W Series*
Grounding Strap (Optional)

Description:
To ground long straight single-pass finned tubular elements, eliminating arcing due to secondary currents.

Use:
Recommended for straight single-pass finned tubular elements over on expansion end. Verify adequate expansion clearances.
End Seal Options

End Seal #1:

Epoxy Barrier

Description:
Epoxy resin fills a 1/4” cavity above the magnesium oxide insulation, to form a barrier against moisture.

Use:
For applications where low to moderate humidity may be present in the terminal area. For use at 266oF maximum for 0.315 element and above. 194oF maximum for 0.260 elements and below.

End Seal #2:

RTV Barrier

Description:
RTV sealant forms a barrier against moisture.

Use:
For high temperature applications where temperatures may range up to 392oF or 428oF.

End Seal #3:

Hermetic Seal

Description:
Ceramic to metal hermetic seal is soldered to the element sheath and cold pin.

Use:
Absolute moisture seal up to 1000oF.

Element Sheath:
Available in element diameters .430 and .475, consult factory for other availability.
Element Sheath Diameter INS Standard (Integral Ceramic Insulator Dim) OAL Standard
0.430 0.5 2.125”
0.475 0.5 2.125”
Alternate element sheath diameters available upon request.
Insulator Options

Insulator #1:

Silicone Rubber (standard)

Description:
General applications where terminal temperatures do not exceed 400oF. 1/4” thick insulation furnished up to 250V; 1/2” thick up to 600V. (Standard insulator unless otherwise specified

Insulator #2:

Mica

Description:

Applications where terminal temperatures do not exceed 900oF. 1/4” thick insulation furnished up to 250V; 1/2” thick up to 600V.

End Seal #3:

Insulator #3:

Ceramic

Description:
Applications where terminal temperatures do not exceed 1400oF. 1/4” thick insulation furnished up to 250V; 1/2” thick up to 600V.
CONTACT US
GET A QUOTE

Calculators

Power Flow Rate Temp Calculator

Calculate the electrical power, flow rate or temperature requirement.
airflow in standard cubic feet per minute
temperature rise in degrees F from the inlet to the exhaust
Watts = SCFM x ΔT/2.5

Temperature Conversion Calculator

Calculate the electrical power, flow rate or temperature requirement.
°F = ((( °C * 9) / 5 ) + 32)
°C = ((( °F - 32) * 5 ) / 9)

Three-Phase Unit Calculator

Fill in two values to find the 3rd.
W = LC * (V * √2)
V = (W / LC) / √2
LC = W / (V * √2)

Single Phase Unit Calculator

Fill in two values to find the 3rd.
W = LC * V
V = LC * W
LC = W / V

Ohms Law Calculator

Fill in two values to find the other two.

O = V / A

O = V² / W

O = W / A²

V = A * O = A * (V/A)

V = √(W * O)

V = W / A

A = V / O

A = W/ V

A = √(W / O)

W = A * V

W = V² / O

W = A² * O

Heat Transfer Through Convection Calculator

ρ = density (lb/ft3)

V = volume flow rate (ft3/hour)

Cp = specific heat (Btu/lb°F)

Ta-Tb = temperature differential (°F)

Q = ρ x V x Cp x (Ta-Tb)


Fill in four values

ρ = density (lb/ft3)
V = volume flow rate (ft3/hour)
Cp = specific heat (Btu/lb°F)
Ta-Tb = TD (°F)
Q = ρ x V x Cp x (Ta-Tb)

ACFM to SCFM

ACFM = airflow in actual cubic feet per minute

P = gage pressure (psi)

T = gas temperature °R = 460 + °F

SCFM = airflow in standard cubic feet per minute


Find Standard Cubic Feet per Minute based on data from your Actual Cubic Feet per Minute Rotameter

airflow in actual cubic feet per minute
gage pressure (psi)
gas temperature °R = 460 + °F
airflow in standard cubic feet per minute

Standard Flow Rate (SCFM) Calculator

Calculate the SCFM.
Actual cubic feet per minute
Actual pounds per square inch at Gauge
Actual temperature in °F. °R = 460 + °F
CFM * (PSI actual / 14.7psi)*(528°R / T actual)

Pressure Conversion

Fill in one value to calculate the other.
PSI = Bar * 14.504
Bar = PSI / 14.504

Mass Flow to volume Metric Flow

Fill in one value to calculate the other two
kg/h = Kilogram Per Hour (lb/min multiply by 27.216)
Lbs/min = Pounds per minute (kg/h divide by 27.216)
SCFM = Standard cubic feet per minute

Power Flow Rate Temp Calculator

Calculate the electrical power, flow rate or temperature requirement.
airflow in standard cubic feet per minute
temperature rise in degrees F from the inlet to the exhaust
Watts = SCFM x ΔT/2.5

Temperature Conversion Calculator

Calculate the electrical power, flow rate or temperature requirement.
°C = ((( °F - 32) * 5 ) / 9)
°F = ((( °C * 9) / 5 ) + 32)

Three-Phase Unit Calculator

Fill in two values to find the 3rd.
W = LC * (V * √2)
V = (W / LC) / √2
LC = W / (V * √2)

Single Phase Unit Calculator

Fill in two values to find the 3rd.
W = LC * V
V = LC * W
LC = W / V

Ohms Law Calculator

Fill in two values to find the other two.

O = V / A

O = V² / W

O = W / A²

V = A * O = A * (V/A)

V = √(W * O)

V = W / A

A = V / O

A = W/ V

A = √(W / O)

W = A * V

W = V² / O

W = A² * O

Heat Transfer Through Convection Calculator

ρ = density (lb/ft3)

V = volume flow rate (ft3/hour)

Cp = specific heat (Btu/lb°F)

Ta-Tb = temperature differential (°F)

Q = ρ x V x Cp x (Ta-Tb)


Fill in four values

ρ = density (lb/ft3)
V = volume flow rate (ft3/hour)
Cp = specific heat (Btu/lb°F)
Ta-Tb = TD (°F)
Q = ρ x V x Cp x (Ta-Tb)

ACFM to SCFM

ACFM = airflow in actual cubic feet per minute

P = gage pressure (psi)

T = gas temperature °R = 460 + °F

SCFM = airflow in standard cubic feet per minute


Find Standard Cubic Feet per Minute based on data from your Actual Cubic Feet per Minute Rotameter

airflow in actual cubic feet per minute
gage pressure (psi)
gas temperature °R = 460 + °F
airflow in standard cubic feet per minute

Standard Flow Rate (SCFM) Calculator

Calculate the SCFM.
Actual cubic feet per minute
Actual pounds per square inch at Gauge
Actual temperature in °F. °R = 460 + °F
CFM * (PSI actual / 14.7psi)*(528°R / T actual)

Pressure Conversion

Fill in one value to calculate the other.
PSI = Bar * 14.504
Bar = PSI / 14.504

Mass Flow to volume Metric Flow

Fill in one value to calculate the other two
Kg/h = Kilogram Per Hour (lb/min multiply by 27.216)
Lbs/min = Pounds per minute (kg/h divide by 27.216)
SCFM = Standard cubic feet per minute
