OPTIONS

• Flexible armor (BX) installed over flexible leads.
• Metal braid installed over flexible leads.
• Flexible leads – Teflon and fiberglass insulated nickel or nickel clad conductor
• Strain relief bracket
• Terminal Box
• Flexible Armor in Right Angle Bracket
• Thermocouple or Clearance Holes
• Button Terminals
• Appliance Pins
• Twist lock plug installed on leads
• Additional thickness, specify standard thickness is 3/16″
• Series with leads-specify option A, B or C
• Dual voltage, specify
• Stainless steel sheath, designed for higher sheath temperatures
• Grounding stud
• Series with post terminals
• Mounting slots 1/4″ x 3/8″, one at each end of strip
• Mounting slots 1/4″ x 3/8″ specify location
• No mounting slotsADDITIONAL INFORMATION

SPECIFICATIONS

LENGTH
Minimum without mounting holes 2-1/2″
Minimum with mounting holes 3-1/2″
Maximum consult Omega

WIDTH
Minimum, Types P1R-L2CR 3/4″
Minimum, Type P3R 1-3/4″
Maximum consult Omega

THICKNESS
Nominal 3/16

SHEATH TEMPERATURE
Maximum, Standard units 900 Deg. 482 Deg C
Maximum, Stainless Steel Sheath 1200 Deg. F 650 Deg. C

WATTAGE
35 WATTS/sq. in. recommended max.

TERMINALS
10-24 x 7/16 POST TERM. Or 12″ FLEX. LEADS

VOLTAGE
Maximum 480VAC

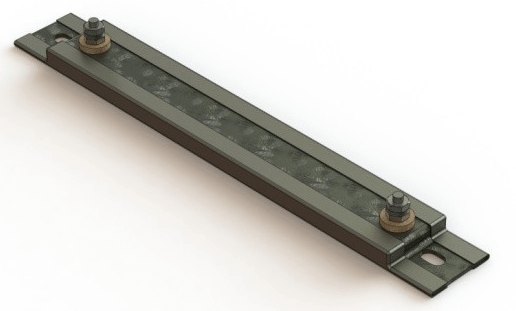

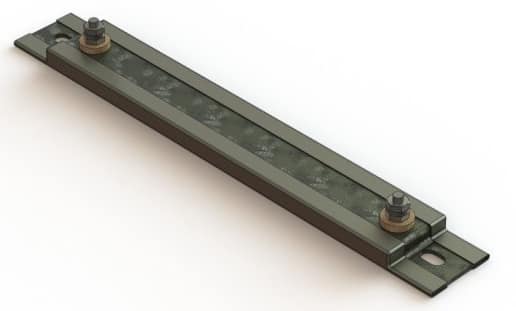

SPECIFICATIONS

• ELEMENT – Nickel/Chrome Coil
• SHEATH – Stainless Steel(Heavy Gauge)
• THICKNESS – 1/4″-5/16″-3/8″
• TEMPERATURES – Up to 1400 deg.F
• WATT DENSITY –Up to 45 watts/square inch
• VOLTAGE – Up to 240 volts – Consult factory for higher voltage
• TERMINALS – Post Type-Standard 10-24 Thread
• LENGTH – Minimum 4″ up to any practical length
• MOUNTING TABS – Available with or without tabs
• MOUNTING SLOTS – 5/16″ X 1/2″

ADDITIONAL INFORMATION

LEADS – Off top surface or from end
LEADS – In braid or armor

POST TERM – 2 on 1 end – 1 on each end
TERM BOX CERAMIC
TERMINAL COVERS

OTHER SIZES AVAILABLE
Please consult factory with your requirements. Radiant Panels incorporating these heaters can be custom manufactured.

ALL HEATERS AVAILABLE with Leads Out End,
One Each End, or Leads Off Top Surface.
Styles PT-P and PT_O Available in 1-1/2″
Width Only. Thickness Tolerance ±.005″

HOW TO ORDER -SPECIFY:
With or without mounting tabs;
A-B-C dimensions; 1″ width specify 1/4″ or
5/16″ thick; 1-1/2″ width specify 5/16 or
3/8″ thick; If post terminal choose style If leads choose location; Add any options required.

• Air & Gas Heating
• Oven & Duct Heating
• Load Banks
• Space Heaters
• Heat Curing
• Food Warmers
• Shrink Tunnels
• Moisture Protection
• Ink Drying

SPECIFICATIONS:

• Insulation- Ceramic Core
• Element- Nickel Chrome coil
• Sheath- Seamless Stainless Steel
• Thickness- 5/16″
• Fin Size- 1-3/8″ x 2″
• Fin Material- Nickel Plated Steel (ST.ST. Opt.)
• Fin Spacing- 6 per inch
• Mounting Slot- 5/16″ x 1/2 ” 3/8″ x 1/2″**Line voltage over 300 volts require secondary insulating bushing with larger Mtg. Slots**

MAXIMUM WATT DENSITY:

• Still Air:
  • Up to 300 F – 20 watts/sq. in.
  • 300 F to 600 F – 16 watts/sq./in.
  • 600 to 800 F – 10 watts/sq./in.
• Moving Air- 600 ft./min.
  • Up to 200 F – 40 watts/sq. in.
  • 200 to 400 F – 30 watts/sq./in.
  • 400 to 600 F – 20 watts/sq./in.
• Moving Air- 1200 ft./min.
  • Up to 200 F – 50 watts/sq. in.
  • 200 to 400 F – 35 watts/sq./in.
  • 400 to 600 F – 25 watts/sq./in
