INDUSTRIAL THERMOCOUPLE

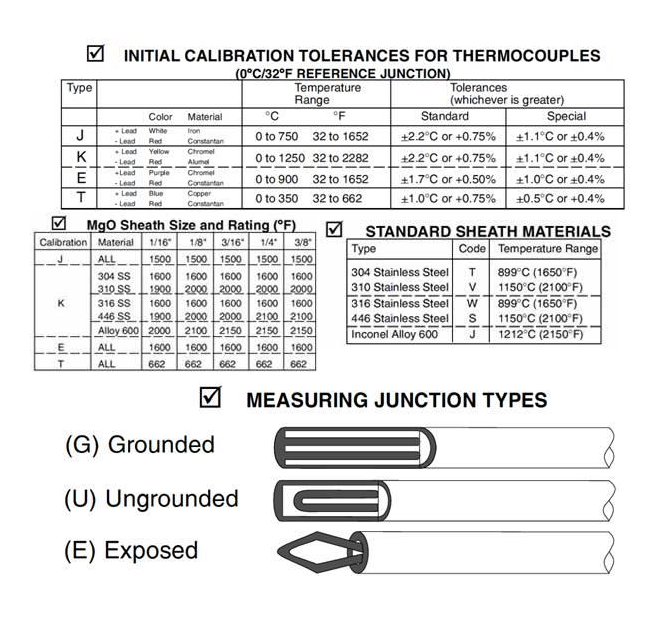

Industrial thermocouples are used in high temperature applications, such as those listed below. Several calibrations are available as well as various mechanical configurations. Contact STS for technical assistance in choosing the correct unit for your application. From standard insulated elements to complete noble metal assemblies, STS provides temperature sensors for your high temperature applications. Please contact STS for availability of additional industrial thermocouple configurations.

Applications:

  • Metal processing
  • Heat treating
  • Refineries
  • Glass manufacturing
  • Semiconductor manufacturing
PART NUMBER BUILD SHEET INDUSTRIAL TCs
IndustrialTC

Mineral Insulated (MGO) Sensors

Industrial Thermocouples



Plastics & Packaging



Temperature Transmitters



Resistance Temperature Detectors





Thermowells







Custom Designed sensor



Food, Dairy, & Pharma

Sensors with Digital Transmitters

Calculators
