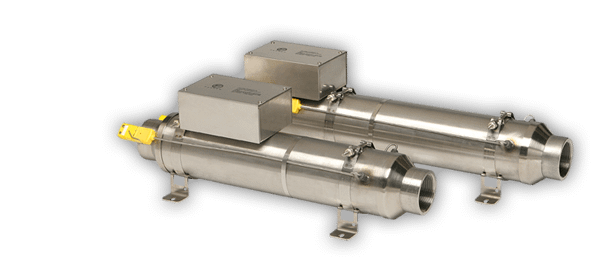

The Flow Torch™ 400 is an open coil air heater designed for high flow rates at low pressure drop due to its efficient design with minimal flow restrictions. The robust construction of this 4” diameter stainless steel heater offers reliable long-life performance and reduced operational cost.

The Flow Torch™ 400 incorporates a spiral wound element of the highest grade material, providing quick heat up and cool down cycles with maximum heat transfer.

The Flow Torch™ 400 is capable of operating with airflow of 500 SCFM and a maximum operating pressure of 3 PSIG*. Maximum output temperature is 482°C (900°F).

All Flow Torch Heaters are UL recognized components under UL file number E365755.
Regenerative Blowers available with complete systems.

* Note: minor leakage through stranded leads

35000 W 250 °F 900 °F 19 500 3
FT 200

Mounting.= Horizontal / Vertical

Heater Body = Stainless Steel

Inlet Fittings = Stainless Steel

Exhaust Fittings = Stainless Stee

Applications include:

  • Hot Air Curtains
  • Laminating
  • Plastic Curing
  • Air Drying
  • Web Drying
  • Metallization
  • Baking
  • Textile Applications
  • Exhaust Gas Heating
  • Chemical Processing
  • Ink Drying
  • Hopper Drying
  • Dehumidification
  • Paint Baking/Drying
  • Sterilization

Control Panels are also available to provide precise temperature regulation.

Product Fittings

Exhaust Fitting - 2" NPT femaleExhaust Fitting 2″ NPT Female

Exhaust Fitting - 3" diameter tube
Exhaust Fitting 3″ diameter tube
Exhaust Fitting - 9” Flanged Fitting
Exhaust Fitting 9″ Flanged Fitting
Inlet Fitting - 3" diameter tube
Inlet Fitting 3″ Diameter Tube
Inlet Fitting - 9" Flanged Fitting
Inlet Fitting 9″ Flanged Fitting
Inlet Fitting - 2" NPT female
Inlet Fitting 2″ NPT female
Pressure drop Chart (without fittings)

Pressure drop chart (with fittings)
