Heat Torch™ 050

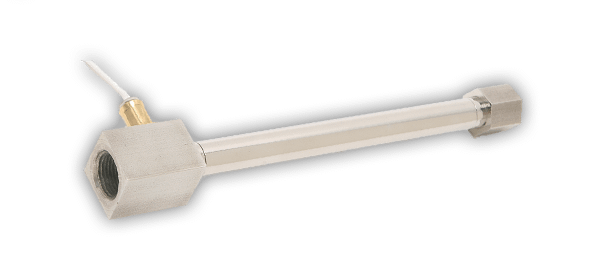

This 0.5” diameter Heat Torch™ 050 Heater is compact and reliable when moderate amounts of compressed air (or non-combustible inert gas, ) are required.
The Heat Torch™ 050 Air Heater has allowable air flow ranging from 1 to 10 SCFM and is available in power ratings of 100 watts to 500 watts (with standard increments of 50 watts). Maximum air input temperature is 250°F (121°C) with 1300°F (704°C) maximum output with a ceramic core, and 932°F (500°C) maximum output with a mica core.
Applications for Heat Torch™ 050 include staking, curing, drying, heat shrinking, sterilization, and adhesive activation. We provide pressure testing as an add-on service..
CORE |
MAX WATT |
MAX INLET |
MAX EXHAUST |
MIN SCFM |
MAX SCFM |
PSIG* |
|
Ceramic |
600W |
250°F |
1300°F |
1 |
10 |
120 |
|
Mica |
600W |
250°F |
932°F |
1 |
10 |
120 |

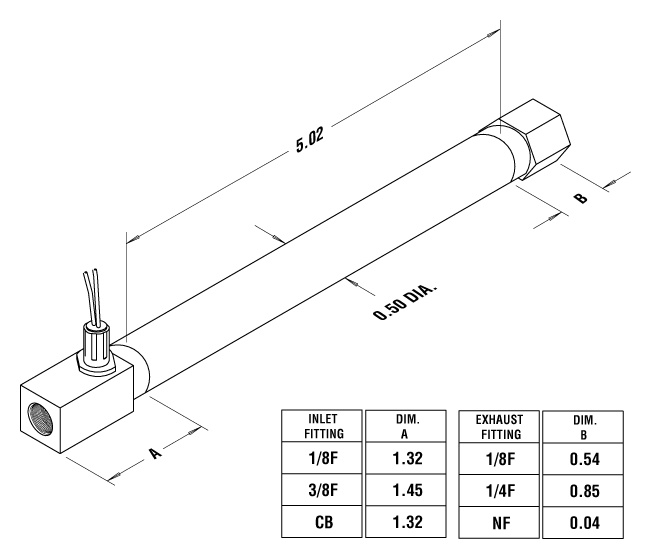

DRAWINGS (Step 3D Files):
Mounting = Horizontal / Vertical
Leads = 20 Gauge, 12″ long
Heater Body = Stainless Steel
Air Entryway Fitting = Stainless Steel
Applications for the Heat Torch™ 050 include:
-
-
-
- Staking
- Curing
- Drying
- Heat Shrinking
- Sterilization
- Adhesive Activation
-
-
Additional Information:
airflow / pressure drop
| AIRFLOW (SCFM) | PRESSURE DROP (PSIG) |
| 1 | 0.53 |
| 2 | 2.1 |
| 3 | 4.7 |
| 4 | 8.4 |
| 5 | 13.2 |
| 6 | 19.0 |
| 7 | 25.8 |
| 8 | 33.7 |
| 9 | 42.7 |
| 10 | 52.7 |
PRESSURE FITTINGS
- Exhaust Fitting - 1/4" NPT Female
- Exhaust Fitting - No Fitting
- Exhaust Fitting - R1/4-19 BSPT female
- Exhaust Fitting - 1/8" NPT female
- Exhaust Fitting - 1/4" NPT Female
- Inlet Fitting - R1/8-28 BSPT female
- Inlet Fitting - Counterbore 1/2" female
- Inlet Fitting - 1/8" NPT Female
- Inlet Fitting - R1/8 BSPT female
- Inlet Fitting - 3/8" NPT Female
- Inlet Fitting - 1/8" NPT female
- Inlet Fitting - Counterbore 1/2" female
- Inlet Fitting - 3/8" NPT Female
