Heat Torch™ 075

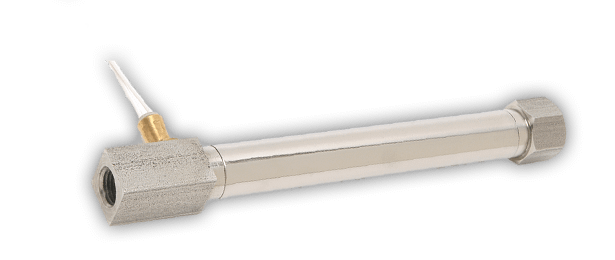

Our Heat Torch™ 075 is a 0.75” diameter compact air heater providing moderate amounts of compressed air, and other non-combustible gases. Heat Torch™ 075 offers over twice the air flow capacity of the Heat Torch™ 050. The Heat Torch™ 075 can be mounted in either a horizontal or vertical position and includes several inlet and exhaust fitting options.
Heat Torch™075 will meet requirements for air flow ranging from 1.3 to 25 SCFM with power of 100 watts to 1000 watts [in 100 watts increments].
Maximum air input temperature is 250° F (121° C) with 1300° F (704° C) maximum output temperature with a ceramic core, and 932°F (500°C) maximum output with a mica core.
We provide pressure testing as an add-on service..
CORE |
MAX WATT |
MAX INLET |
MAX EXHAUST |
MIN SCFM |
MAX SCFM |
PSIG* |
|
Ceramic |
1000W |
250°F |
1300°F |
1.3 |
25 |
120 |
|
Mica |
1000W |
250°F |
932°F |
1.3 |
25 |
120 |
DRAWINGS (STEP 3D Files):
Mounting = Horizontal / Vertical
Leads = 20 Gauge, 12″ long
Heater Body = Stainless Steel
Air Entryway Fitting = Stainless Steel
Applications for the Heat Torch™ 075 include:
-
-
-
- Staking
- Curing
- Drying
- Heat Shrinking
- Sterilization
- Adhesive Activation
-
-
Additional Information:
airflow / pressure drop
| AIRFLOW (SCFM) | PRESSURE DROP (PSIG) |
| 1 | 0.53 |
| 2 | 2.1 |
| 3 | 4.7 |
| 4 | 8.4 |
| 5 | 13.2 |
| 6 | 19.0 |
| 7 | 25.8 |
| 8 | 33.7 |
| 9 | 42.7 |
| 10 | 52.7 |
Wattage / Minimum Flow Chart
| WATTAGE | MINIMUM FLOW REQUIRED AT MAX POWER INLET AIR TEMPERATURE 72°F (SCFM) |
| 100 | 1.3 |
| 200 | 1.3 |
| 300 | 1.3 |
| 400 | 1.3 |
| 600 | 1.3 |
| 700 | 1.3 |
| 800 | 1.4 |
| 900 | 1.7 |
| 1000 | 1.8 |
PRESSURE FITTINGS
- Exhaust Fitting - 3/8" NPT Female
- Exhaust Fitting - 1/4" NPT Female
- Exhaust Fitting - 3/8" NPT Female
- Exhaust Fitting - 3/4" to 1/2" reducing adapter
- Exhaust Fitting - no fitting
- Exhaust Fitting - R3/8=19 BSPT female
- Exhaust Fitting - 3/8" NPT Female
- Exhaust Fitting - 3/8" NPT Female
- Exhaust Fitting - 1/4" NPT Female
- Exhaust Fitting - no fitting
- Exhaust Fitting - 3/8" NPT Female
- Exhaust Fitting - R3/8=3/8-19 BSPT Female
- Exhaust Fitting - 3/4" to 1/2" reducing adapter
- Inlet Fitting - 1/8"NPT Female
- Inlet Fitting - R1/4-19 BSPT female
- Inlet Fitting - 1/4" NPT Female
- Inlet Fitting - Counterbore 1/2" female
- Inlet Fitting - 1/8" NPT Female
- Inlet Fitting - R1/4-19 BSPT female
- Inlet Fitting - Counterbore 1/2" female
- Inlet Fitting - 1/4" NPT Female
