Heat Torch™ 030
The Heat Torch™ 030 is ideal for concentrating hot air (and other non-combustible gas) streams into small areas with negligible heat losses.
This 0.313” diameter air heater is our smallest standard Heat Torch™ delivering greater precision with a focused compressed air stream. It can be mounted vertically or horizontally. (Horizontal mounting is preferred at high temperatures.)
Heat Torch™ 030 operates best with air flow in the range of 0.3 SCFM to 1.0 SCFM and power options up to 300 watts. The Maximum recommended exhaust temperature is 900°F (482°C). We provide pressure testing as an add-on service.
MAX WATT |
MAX INLET |
MAX EXHAUST |
MIN SCFM |
MAX SCFM |
PSIG* |
| 300W | 250°F | 932°F | 0.3 | 1 | 120 |

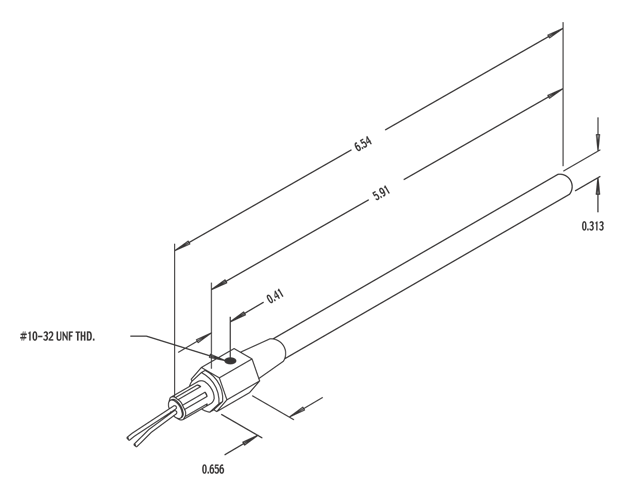

DRAWING (Step 3D File):
Mounting = Horizontal / Vertical
Leads = 20 Gauge, 12″ long
Heater Body = Stainless Steel
Air Entryway Fitting = Stainless Steel
Applications for the Heat Torch™ 030 include:
-
-
-
- Melting
- Cutting
- Adhesive Activation
- De-soldering
- Heat Staking
- Sterilization
-
-
