All In ONe DESICCANT DRYER SPECS.
| MODEL# |
HEATER kW |
DRY AIR (CFM) | HOPPER CAPACITY (ILBS) |
| SCD-80U/40H-D | 3.9 | 23.5 | 117 |
| SCD-160U/80H-D | 6 | 47 | 235 |
| SCD-230U/120H-D | 6 | 70 | 340 |
| SCD-450U/200H-D | 7.2 | 130 | 668 |
description
The Shini USA Auxiliaries SCD all-in-one honeycomb desiccant wheel compact dryer is a complete system. The all-in-one honeycomb dryer incorporates drying and dehumidifying along with a portable two-stage conveying package for mobile drying on demand.
Ideal for the plastics industry, these dryers have many day-to-day applications that may be a practical solution for your company’s needs.
DESICCANT CABINET DRYER SPECS
| MODEL# |
DRYER CAPACITY (Ibs/hr) |
PIPE DIAMETER (in) |
DIM. (LxWxH)
|
| SD-40H-PHC-D-UL | 30 | 2 | 30x19x50 |
| SD-80H-PHC-D-UL | 70 | 2 | 32x21x54 |
| SD-120H-PHC-D-UL | 100 | 2 | 32x21x54 |
| SD-200H-PHC-D-UL | 7.2 | 130 | 41x26x61 |
Description

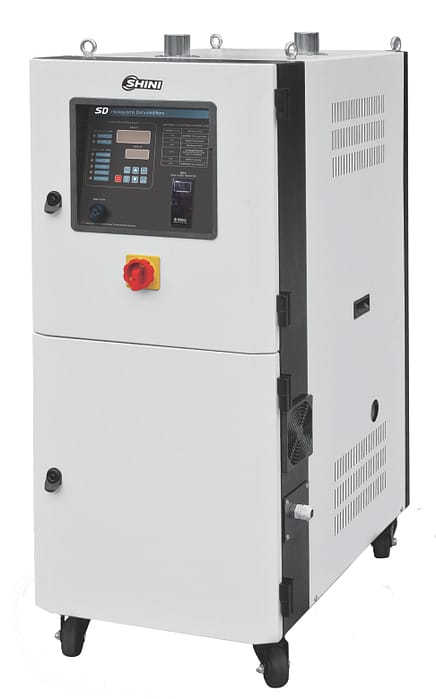

The Shini USA silica gel honeycomb desiccant wheel dryers feature the latest in rotary wheel drying technology which allows dehumidifying, regenerating and cooling cycles to occur at the same time while delivering a dew point of -40°F with an option of -50°F.
DESICCANT wheel DRYing Cart SPECS.
| MODEL# |
Hopper Capcity (Ibs) |
Dry Air Capcity (CFM) |
Process blower/heater (HP)/(kW)
|
| SDD-80U-40H-D | 117 | 23 | .12/4 |
| SDD-23OU/120H-D | 340 | 70 | .75/6 |
| SDD-300U/200H-D | 445 | 100 | 2.4/7.2 |
description

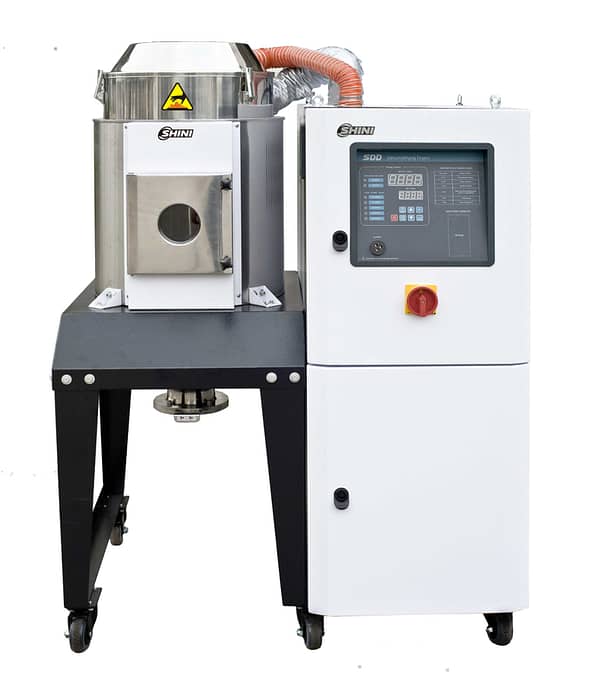

The Shini USA portable desiccant wheel dryer SDD series with a built-in dew point monitor features a silica gel honeycomb desiccant wheel dryer with a dual wall stainless steel insulated drying hopper mounted on a portable cart.
The portable desiccant wheel drying cart with the rotary wheel drying technology allows dehumidifying, regenerating and cooling cycles to occur at the same time while still delivering a dew point of -40°C.
hot air hopper dryers specs.
| MODEL# |
Hopper Capcity (Cu/Ft) |
Hooper Capcity (14.7) |
Blower (HP)
|
| SHD-12 | 0.42 | 14.7 | 0.1 |
| SHD-25 | 0.88 | 30.8 | 0.2 |
| SHD-50 | 1.76 | 61.6 | 0.2 |
| SHD-150 | 5.29 | 247.1 | 0.3 |
| SHD-300 | 10.59 | 370.6 | 0.5 |
description

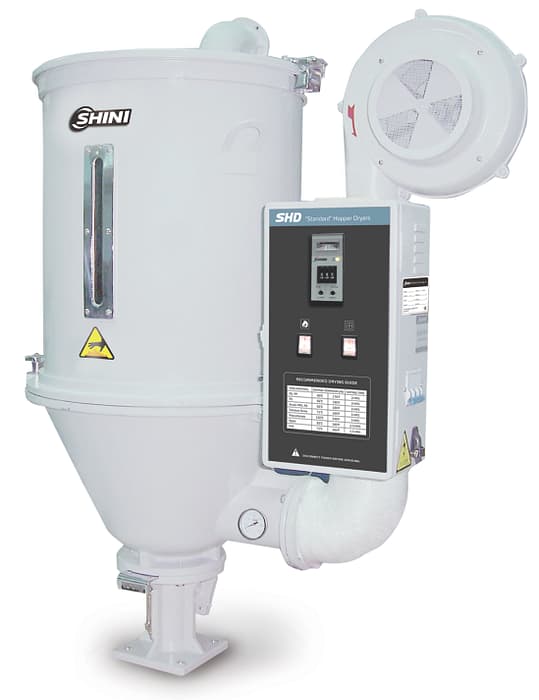

The Hot Air Drying hopper works by drawing ambient air through a filter in to a heater/blower unit and is heated. The hot air is circulated up through the material in the hopper and the moisture is carried up and out of the hopper.
