TEMPERATURE TRANSMITTERS

LCD-H11x (lOOP pOWERED HEAVY-DUTY LCD FIELD INDICATOR)

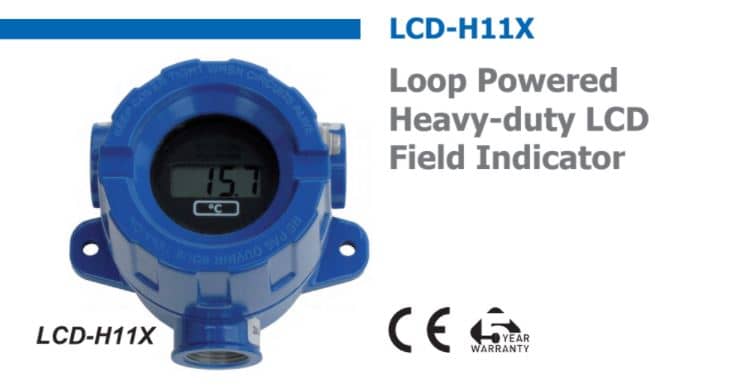

LCD-H11X is a digital, heavy-duty LCD indicator for installation directly in a 4-20 mA loop without need for external power. The indicator is equipped with high-contrast, easy-to-read LCD digits. The scale is easily programmable, without reference signal, by three push buttons for any values between – 1999 and 9999.



• Can be used with any DIN B transmitter or as display only
• Installation directly in a 4-20 mA loop without need for power supply
• Only 1.5 V voltage drop
• High-contrast, 4-digit LCD display
• Simple push button scaling without reference signal
• Any range between -1999 to 9999 for 4 to 20 mA input
• Labels for different engineering units are included
• Typical accuracy of 0.05 % allows for high precision read-outs
• HART transparent
• Designed for ambient temperatures between -25 to +70 °C / -13 to +158 °F
• Field mounting in rugged IP 66 / NEMA 4X housing
• 90° indexing of display orientation

Q2 Intelligent Transmitter (Isolated Input)

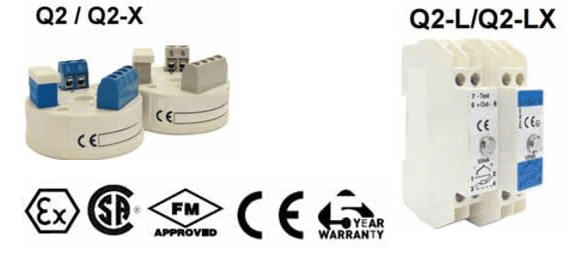

Q2 / Q2-X, Q2-L/Q2-LX are universal, isolated 2-wire transmitters for temperature and other measurement applications. They combine competitive pricing, functionality and simple configuration. Useful error correction functions improve the accuracy.
Q4 Universal HART Compatible Transmitter (Isolated Input)

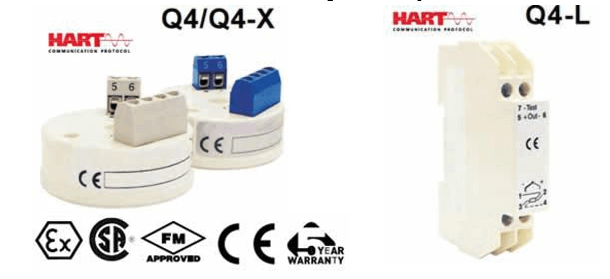

Q4/Q4-X, Q4-L are smart and universal 2-wire in-head transmitters for temperature and other measurement applications. They are fully HART compatible, with communication through the HART protocol.
Q7 Multi-Range Transmitter (Non-Isolated Input)

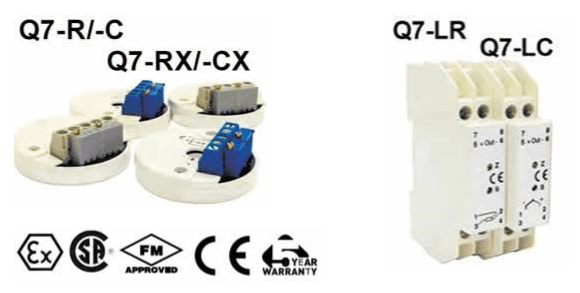

Q7 is a family of multirange 2-wire temperature transmitters for Pt100 or Thermocouple input. Designed for highest reliability and excellent industrial performance. The ”low profile” housing is extremely durable and facilitates easy connections and adjustments. Q7-LR is a multirange 2-wire temperature transmitter for Pt100 input. Q7-LC is adjustable for 5 different thermocouple types. Q7-LR/-LC are designed for highest reliability and excellent industrial performance.
Q9 Intelligent Transmitter (Non-Isolated Input)

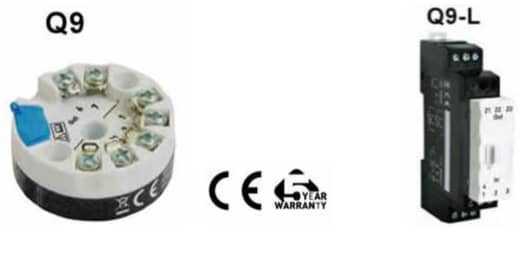

Q9 is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. The Low Profile housing has a hight of only 18.5 mm / 0.72 inch. Configuration is made in seconds with the user friendly Windows software. No external power supply required for configuration. The transmitter is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types. Useful error correction functions improve the accuracy. Q9-L is a basic, programmable non-isolated, easy-to-use 2-wire transmitter. Configuration is made in seconds with the user friendly Windows software. No external power supply required for configuration. Q9-L is programmable for RTD’s in 3- and 4-wire connection according to different standards as well as for 11 T/C types. Useful error correction functions improve the accuracy.
Q10 Multi-Range Transmitter (Non Isolated Input)

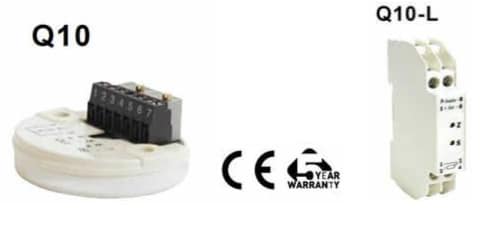

Q10 is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output. Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals. Q10 is designed for high reliability and good industrial performance. The “low profile” housing is extremely durable and facilitates easy connections and adjustments. Q10-L is a multirange 3-wire temperature transmitter with Pt100 or Pt1000 input and 0-10 V output. Main applications are in the HVAC sector, where the control systems often require 0-10 V input signals. Designed for high reliability and good industrial performance.
